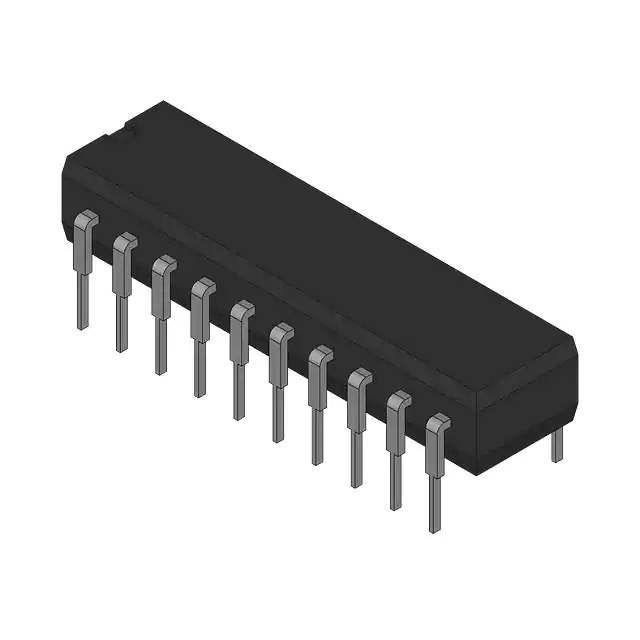

XC68HC705JJ7CP Real Image
Same model may have multiple batches, images only for reference.

XC68HC705JJ7CP

Part No XC68HC705JJ7CP
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description 8-BIT, OTPROM, 2.1MHZ, HCMOS
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Series HC05
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 68HC05
Core Size 8-Bit
Speed 2.1MHz
Peripherals LVD, POR, WDT
Number of I/O 14
Program Memory Size 6.016KB (6.016K x 8)
Program Memory Type EPROM
RAM Size 224 x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Oscillator Type External, Internal
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP
Base Product Number XC68
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 903839-XC68HC705JJ7CP
Ultra Librarian 3D Model Ultra Librarian XC68HC705JJ7CP CAD Model

Description

The 903839-XC68HC705JJ7CP is an 8-bit microcontroller from the HC05 series by Freescale Semiconductor - NXP.

  • Core Processor: 68HC05
  • Operating Speed: 2.1MHz
  • Package: 20-DIP
  • Program Memory Size: 6.016KB (6.016K x 8)
  • Memory Type: EPROM
  • RAM Size: 224 x 8
  • Peripherals: LVD, POR, and WDT
  • I/O Pins: 14
  • Voltage Supply: 2.7V to 5.5V
