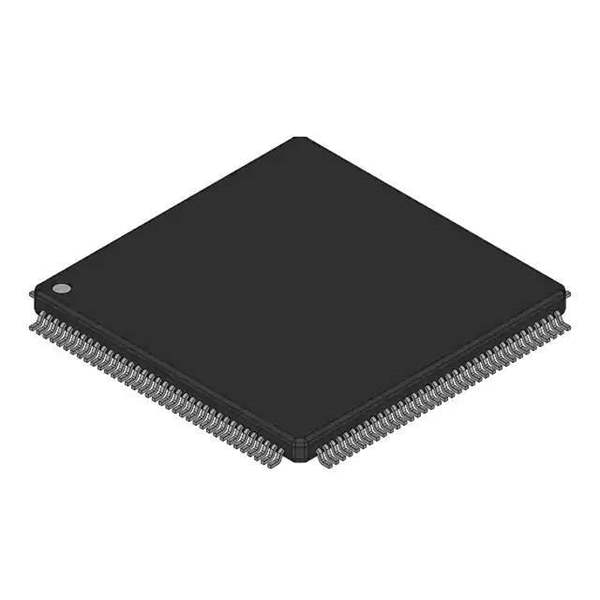

S9S12H256J1VFVR Real Image
Same model may have multiple batches, images only for reference.

S9S12H256J1VFVR

Part No S9S12H256J1VFVR
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MCU 16-BIT HCS12 HCS12 CISC 256K
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor HCS12
Core Size 16-Bit
Speed 50MHz
Connectivity CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals LCD, LVD, POR, PWM, WDT
Number of I/O 85
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 6K x 8
Voltage - Supply (Vcc/Vdd) 2.35V ~ 5.25V
Data Converters A/D 8x8/10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number S9S12
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 311252-S9S12H256J1VFVR
Ultra Librarian 3D Model Ultra Librarian S9S12H256J1VFVR CAD Model

Description

The 311252-S9S12H256J1VFVR is an integrated circuit microcontroller from Freescale Semiconductor - NXP.

  • Series: HCS12
  • Core Processor: 16-bit
  • Speed: 50MHz
  • Package: Bulk
  • Standard Package: 1 piece
  • I/O Pins: 85
  • Program Memory Size: 256KB (256K x 8)
  • Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • RAM Size: 6K x 8
  • Connectivity Options: CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART
  • Programmable: Yes
  • Internal Oscillator Type: Internal
  • Voltage Range: 2.35V to 5.25V
  • Temperature Range: -40°C to 105°C
