Same model may have multiple batches, images only for reference.

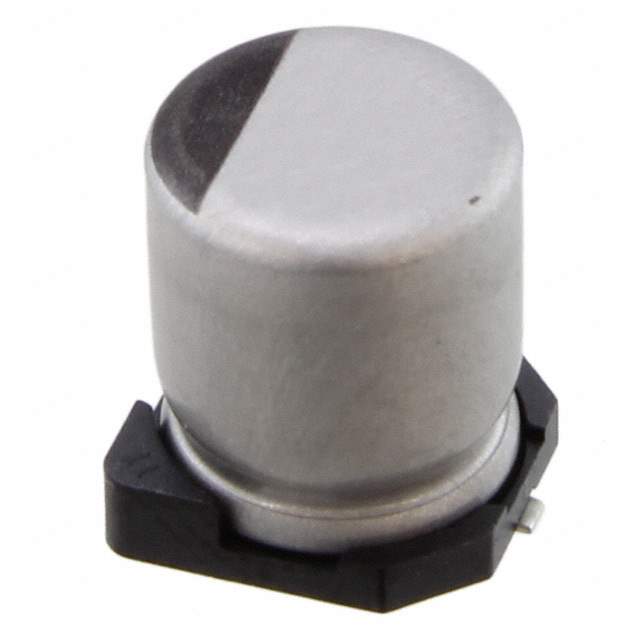

UCZ1H220MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCZ1H220MCL1GS

Part No UCZ1H220MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 500mOhm 2000 Hrs @ 125°C
Datasheet
UCZ1H220MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCZ
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 500mOhm
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 98.5 mA @ 120 Hz
Ripple Current @ High Frequency 197 mA @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.323" (8.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338275-UCZ1H220MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCZ1H220MCL1GS CAD Model

Description

Nichicon's 1338275-UCZ1H220MCL1GS is a radial, can-smd aluminum electrolytic capacitor.

  • Capacitance: 22µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • ESR: 500mOhm
  • Ripple Current: 98.5 mA @ 120 Hz and 197 mA @ 100 kHz
  • Polarized: Yes
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Application: General-Purpose
