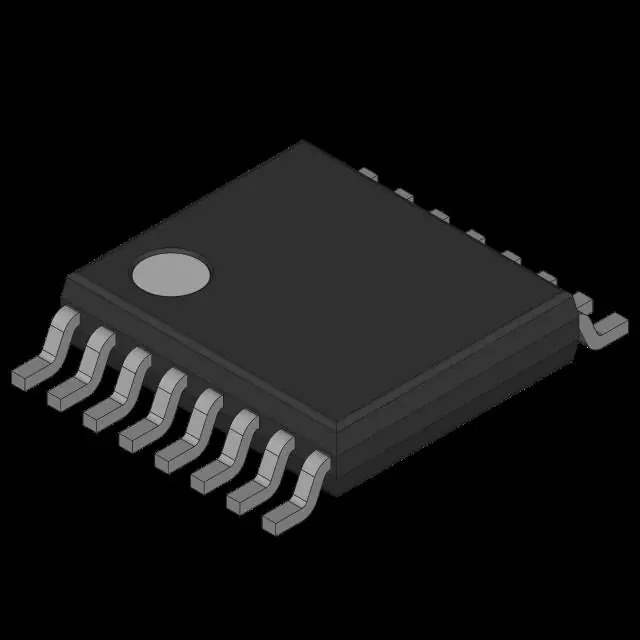

MW4IC2230MBR5 Real Image
Same model may have multiple batches, images only for reference.

MW4IC2230MBR5

Part No MW4IC2230MBR5
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC AMP CELL 1.6-2.4GHZ TO272WB / RF Amplifier IC Cellular, CDMA, EDGE, GSM, TDMA, W-CDMA 1.6GHz ~ 2.4GHz TO-272 WB-16
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Frequency 1.6GHz ~ 2.4GHz
Gain 31dB
RF Type Cellular, CDMA, EDGE, GSM, TDMA, W-CDMA
Voltage - Supply 26V
Current - Supply 60mA
Mounting Type Surface Mount
Package / Case TO-272-16 Variant, Flat Leads
Supplier Device Package TO-272 WB-16
Base Product Number MW4IC
Standard Package 6 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 928528-MW4IC2230MBR5
Ultra Librarian 3D Model Ultra Librarian MW4IC2230MBR5 CAD Model

Description

The 928528-MW4IC2230MBR5 is an RF amplifier designed for use in cellular, CDMA, EDGE, GSM, TDMA, and W-CDMA applications.

  • Frequency Range: 1.6GHz to 2.4GHz
  • Gain: 31dB
  • Voltage: 26V
  • Current: 60mA
  • Mounting Type: Surface Mount
  • Package Compatibility: TO-272-16 Variant, Flat Leads
  • Package: TO-272 WB-16
  • Market Status: Active
  • Manufacturer: Freescale Semiconductor - NXP
