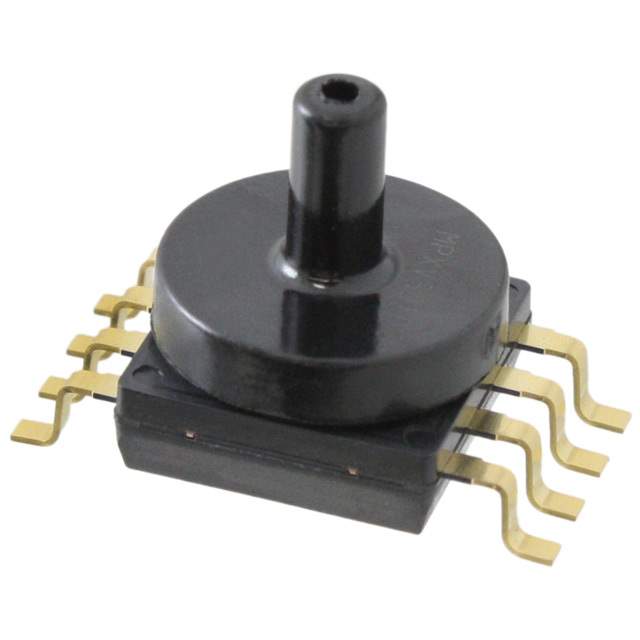

MPXAZ6115AC6U

Part No MPXAZ6115AC6U
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description SENSOR ABS PRESS 16.7PSI MAX
Datasheet
MPXAZ6115AC6U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Obsolete(EOL)
Pressure Type Absolute
Operating Pressure 2.18 PSI to 16.68 PSI (15 kPa to 115 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±1.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.17mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 58.02 PSI (400 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 041791-MPXAZ6115AC6U
Ultra Librarian 3D Model Ultra Librarian MPXAZ6115AC6U CAD Model

Description

The NXP 041791-MPXAZ6115AC6U is a temperature compensated pressure sensor with an analog voltage output.

  • Pressure Range: 2.18 PSI to 16.68 PSI (15 kPa to 115 kPa)
  • Maximum Pressure: 58.02 PSI (400 kPa)
  • Pressure Measurement: Absolute
  • Port: Male 0.13" (3.17mm) tube
  • Termination: PCB
  • Accuracy: ±1.5%
  • Operating Temperature: -40°C to 125°C
  • Category: Sensors and Transducers
  • Status: Obsolete (EOL)
