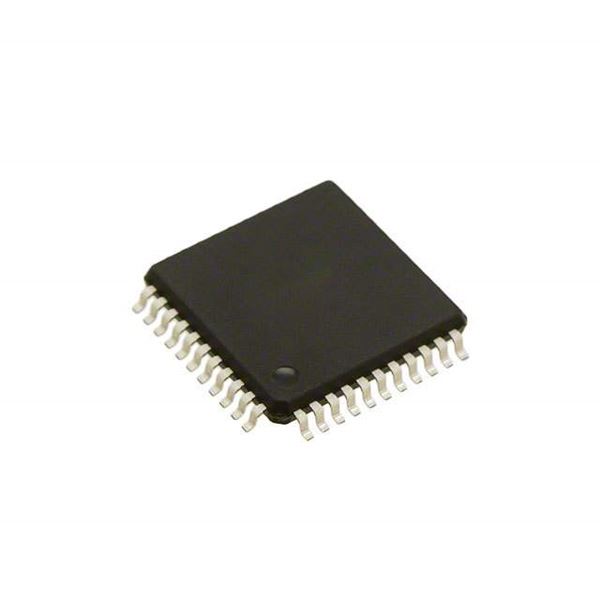

MC9S08RC16FG Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MC9S08RC16FG

Part No MC9S08RC16FG
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 44LQFP
Datasheet
MC9S08RC16FG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 8MHz
Number of I/O 39
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 1K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Temperature Range - Operating 0°C to 70°C (TA)
Case / Package 44-LQFP (10x10)
Win Source Part Number 120951-MC9S08RC16FG
Ultra Librarian 3D Model Ultra Librarian MC9S08RC16FG CAD Model

Description

The NXP 120951-MC9S08RC16FG is an 8-bit S08 core processor microcontroller with a speed of 8MHz.

  • I/Os: 39
  • Program Memory: 16KB FLASH
  • Data Converters: Not supported
  • Temperature Range: 0°C to 70°C (TA)
  • Package: 44-LQFP (10x10)
  • Supply Voltage: 1.8 V to 3.6 V
  • Data RAM Size: 1K x 8
