RB520S30 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

RB520S30

Part No RB520S30
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single

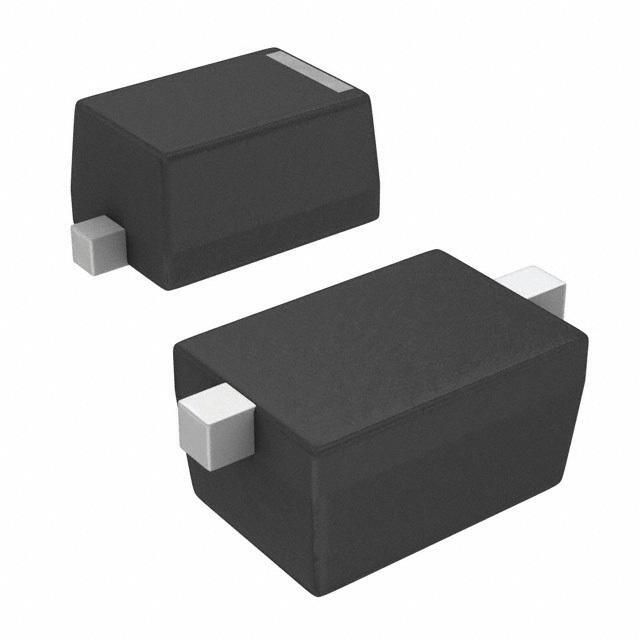

Description Rectifier Diode Schottky 0.2A 2-Pin SOD-523 T/R / DIODE SCHOTTKY 30V 200MA SOD523F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600mV @ 200mA
Current - Reverse Leakage @ Vr 1μA @ 10V
Mounting SMD (SMT)
Case / Package SOD-523F
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 027143-RB520S30
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 8k pcs
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian RB520S30 CAD Model

Description

The Fairchild/ON Semiconductor RB520S30 is a Schottky diode designed for use in a variety of applications.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage: 600mV @ 200mA
  • Reverse Leakage Current: 1μA @ 10V
  • Case: SOD-523F
  • Operating Temperature Range: -55°C to 125°C
  • Popularity: High
  • Halogen-Free: Yes
  • Compliance: EAR99
