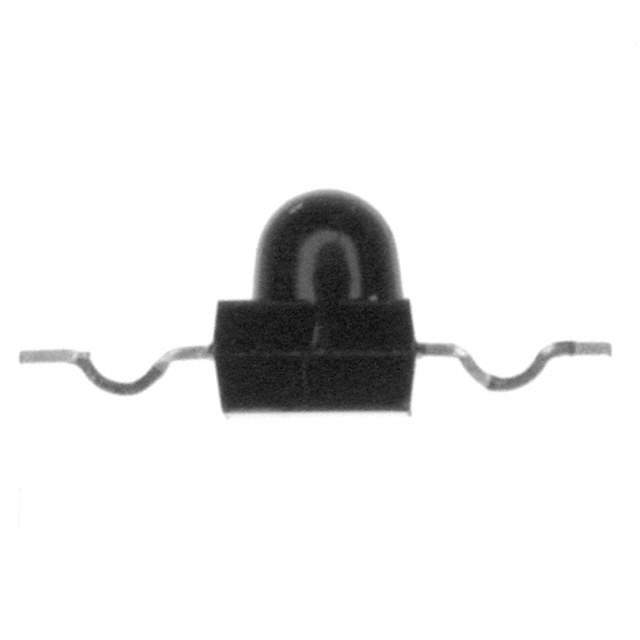

QSB363YR Real Image
Same model may have multiple batches, images only for reference.

QSB363YR

Part No QSB363YR
Manufacturer Fairchild/ON Semiconductor
Catalog Optics - LEDs - Light Pipes
Description PHOTO TRANSISTOR, 940NM  /  Phototransistors 940nm Top View 2-SMD, Yoke Bend
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr Fairchild Semiconductor
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Dark (Id) (Max) 100 nA
Wavelength 940nm
Viewing Angle 24°
Power - Max 75 mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 2-SMD, Yoke Bend
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-QSB363YR,FAIFSCQSB363YR
Standard Package 1
Win Source Part Number 961326-QSB363YR
Ultra Librarian 3D Model Ultra Librarian QSB363YR CAD Model

Description

The QSB363YR is an optical sensor phototransistor IC manufactured by Fairchild Semiconductor.

  • Manufacturer: Fairchild Semiconductor
  • Type: Optical Sensor Phototransistor IC
  • Maximum Power: 75mW
  • Voltage Breakdown: 30V
  • Wavelength: 940nm
  • Viewing Angle: 24 degrees
  • Dark Current: 100nA
  • RoHS Compliant: Yes
  • Alternative Parts: Available for cross-reference
