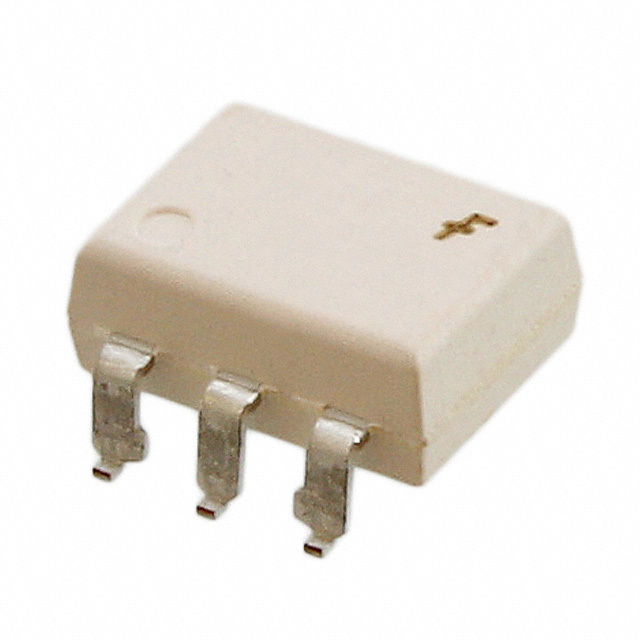

Same model may have multiple batches, images only for reference.
MOC3052SVM Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC3052SVM

Part No MOC3052SVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD / Triac AC-OUT 1-CH 600V 6-Pin PDIP SMD Tube
Datasheet
MOC3052SVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 4170Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 1kV/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - Hold (Ih) 220μA (Typ)
Voltage - Forward (Vf) (Typ) 1.18V
Current - DC Forward (If) (Maximum) 60mA
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Approvals UR, VDE
Win Source Part Number 789069-MOC3052SVM
Popularity Medium
Supply and Demand Status Limited
Family Name MOC3052M
Introduction Date April 14, 2003
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MOC3052SVM CAD Model

Description

The Fairchild/ON Semiconductor isolator is a high-quality electronic component.

  • Win Source Part Number: 789069-MOC3052SVM
  • Operating Temperature: -40°C to 85°C
  • Output Type: Triac
  • Voltage - Off State: 600V
  • Channels: 1
  • Packaging: Tube
  • Package: 6-SMD, Gull Wing
  • Input Current: 10mA
  • Forward Voltage: 1.18V
  • Supply and Demand Status: Limited
