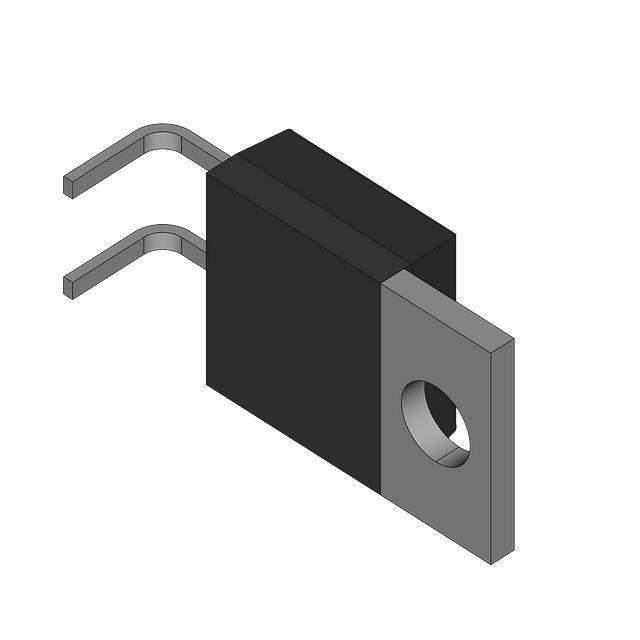

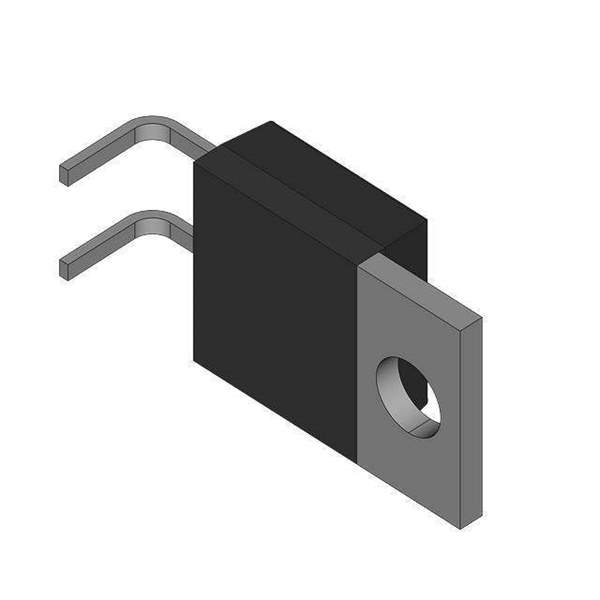

ISL9R460PF2 Real Image
Same model may have multiple batches, images only for reference.

ISL9R460PF2

Part No ISL9R460PF2
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 4A TO220AC
Datasheet
ISL9R460PF2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 2.4V @ 4A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 22ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-220F-2L
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1049036-ISL9R460PF2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ISL9R460PF2 CAD Model

Description

The Fairchild/ON Semiconductor Standard Diode is a highly efficient electronic component designed for use in various applications.

  • Voltage-DC Reverse (Vr) (Max): 600V
  • Current-Average Rectified (Io): 4A
  • Category: Discrete Semiconductor Products
  • Voltage-Forward (Vf) (Max) @ If: 2.4V @ 4A
  • Reverse Recovery Time (trr): 22ns
  • Package: TO-220F-2L
  • Recovery Speed: Fast
  • Current @ Frequency: 200mA (Io)
  • Popularity: Popular
  • Supply and Demand: Limited
  • Quantity per Package: 1k pcs
