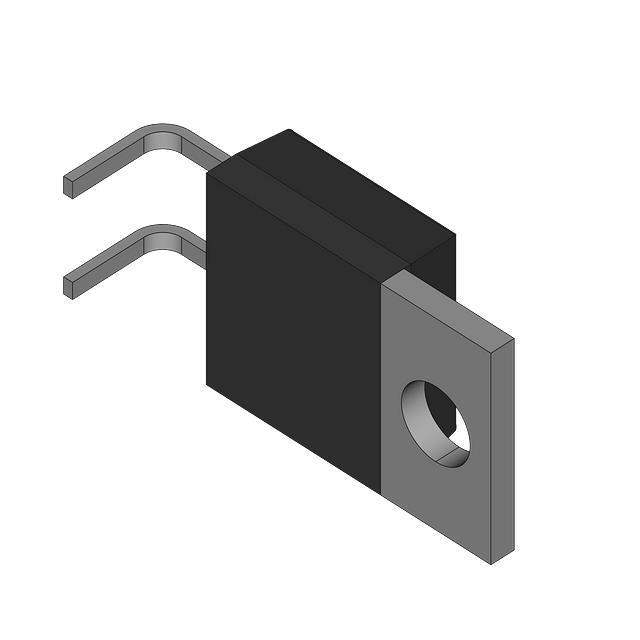

ISL9R1560PF2 Real Image
Same model may have multiple batches, images only for reference.

ISL9R1560PF2

Part No ISL9R1560PF2
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 15A TO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 2.2V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 40ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-220F-2L
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 070197-ISL9R1560PF2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ISL9R1560PF2 CAD Model

Description

The Fairchild/ON Semiconductor 070197-ISL9R1560PF2 is a standard diode type electronic component that is designed to handle voltage up to 600V.

  • Average rectified current: 15A
  • Forward voltage: 2.2V @ 15A
  • Reverse recovery time: 40ns
  • Current reverse leakage: 100μA @ 600V
  • Case/Package: TO-220F-2L
  • Packaging: Tube/Rail
  • Junction temperature range: -55°C to 150°C
  • Category: Discrete semiconductor product
  • Supply and demand status: Balanced
  • Package Contains: 1k pcs
