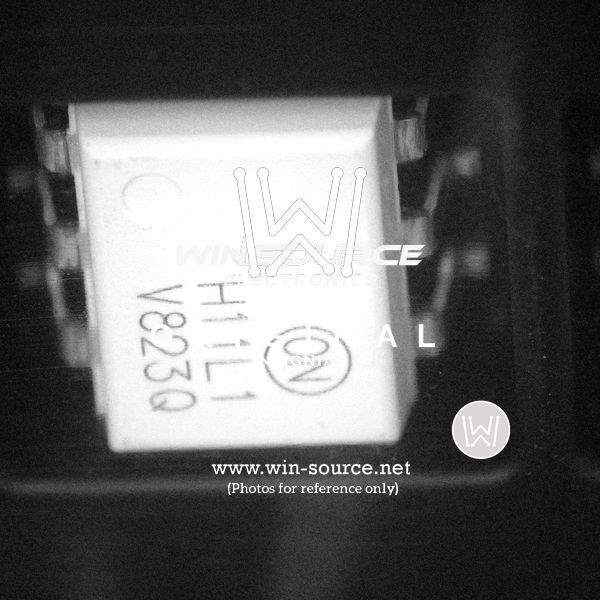

H11L1SR2VM Real Image H11L1SR2VM real image4508 H11L1SR2VM real image4509
Same model may have multiple batches, images only for reference.
H11L1SR2VM Real Image H11L1SR2VM real image4508 H11L1SR2VM real image4509
H11L1SR2VM Real Image H11L1SR2VM real image4508 H11L1SR2VM real image4509
Same model may have multiple batches, images only for reference.

H11L1SR2VM

Part No H11L1SR2VM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 4.17KV OPN COLL 6SMD
Datasheet
H11L1SR2VM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 4170Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 1MHz
Propagation Delay tpLH / tpHL (Max) 4μs, 4μs
Rise and Fall Time 100ns, 100ns
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 092445-H11L1SR2VM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian H11L1SR2VM CAD Model

Description

The Fairchild/ON Semiconductor H11L1SR2VM is an active product that belongs to the isolators category.

  • Output Type: Open Collector
  • Mounting: SMD (SMT)
  • Channels: 1
  • Isolation Voltage: 4170Vrms
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand: Limited
  • Package Quantity: 1k pcs
