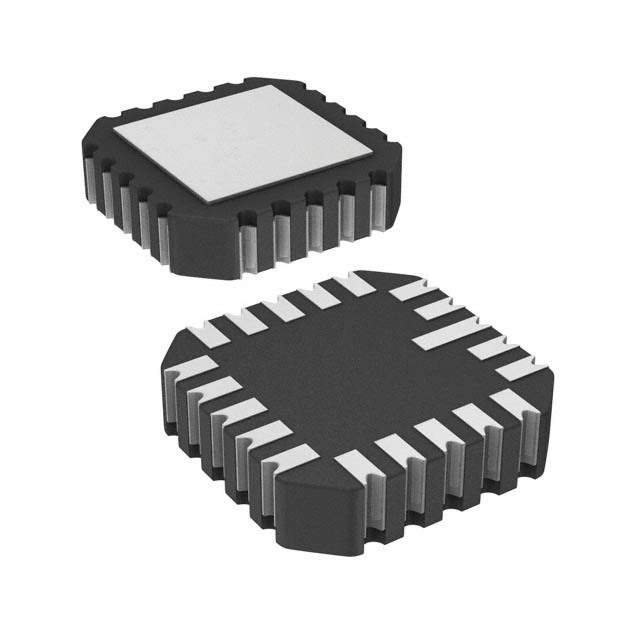

HCPL-6630 Real Image
Same model may have multiple batches, images only for reference.

HCPL-6630

Part No HCPL-6630
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV 2CH OPN COL 20LCCC  /  Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 1500VDC 2 Channel 1kV/µs CMTI 20-LCCC (8.89x8.89)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Broadcom Limited
Package Tube
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Min) 1kV/µs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 25 mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
Rise / Fall Time (Typ) 35ns, 35ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 20mA
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-CLCC
Supplier Device Package 20-LCCC (8.89x8.89)
Base Product Number HCPL-6630
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 516-4223,HCPL-6630-ND
Standard Package 1
Win Source Part Number 1226687-HCPL-6630
Ultra Librarian 3D Model Ultra Librarian HCPL-6630 CAD Model

Description

The HCPL-6630 is a logic output optoisolator that is commonly used in electronic devices manufactured by Broadcom Limited.

  • Package: 20-CLCC
  • Data Rate: 10MBd
  • Forward Current: 20mA
  • Forward Voltage: 1.5V
  • Rise/Fall Time: 35ns
  • Output/Channel Current: 25mA
  • Number of Channels: 2
  • Voltage Isolation: 1500VDC
  • Common Mode Transient Immunity: 1kV/μs
  • Propagation Delay tpLH/tpHL: 100ns
  • Supply Voltage: 4.5V ~ 5.5V
  • Operating Temperature: -55°C ~ 125°C
