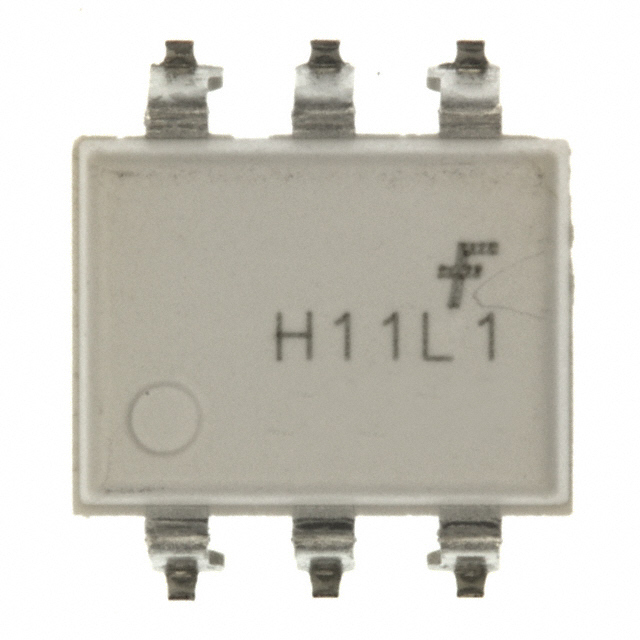

H11L1SR2M Fairchild/ON Semiconductor H11L1SR2M Real Image H11L1SR2M real image H11L1SR2M real image4507
H11L1SR2M Fairchild/ON Semiconductor H11L1SR2M Real Image H11L1SR2M real image H11L1SR2M real image4507
Same model may have multiple batches, images only for reference.

H11L1SR2M

Part No H11L1SR2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 4.17KV OPN COLL 6SMD
Datasheet
H11L1SR2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 4170Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 1MHz
Propagation Delay tpLH / tpHL (Max) 4μs, 4μs
Rise and Fall Time 100ns, 100ns
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 001458-H11L1SR2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name H11L1SR2M
Introduction Date November 01, 2001
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian H11L1SR2M CAD Model

Description

The Fairchild/ON Semiconductor H11L1SR2M is a single channel open collector output optocoupler with an isolation voltage of 4170Vrms.

  • Channel Output Current: 50mA
  • Continuous Forward Current: 30mA
  • Package: 6-SMD
  • Operating Temperature: -40°C to 85°C
  • Category: Isolators
  • Popularity: High
