Same model may have multiple batches, images only for reference.

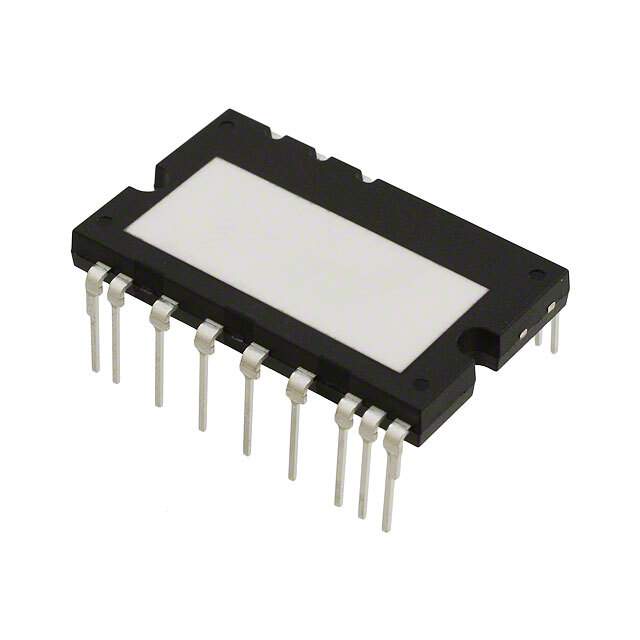

FNC42060F2 Real Image
Same model may have multiple batches, images only for reference.

FNC42060F2

Part No FNC42060F2
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description Motion SPMR 45 Series
Datasheet
FNC42060F2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Motion SPM 45
Type IGBT
Configuration 3 Phase
Current 20A
Voltage 600V
Voltage - Isolation 2000Vrms
Package 26-PowerDIP Module (1.024", 26.00mm)
Win Source Part Number 1174928-FNC42060F2
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Family Name FNC42060F
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian FNC42060F2 CAD Model

Description

The FNC42060F2 is part of the Motion SPM 45 series manufactured by Fairchild/ON Semiconductor.

  • Type: IGBT
  • Voltage: 600V
  • Current: 20A
  • Configuration: 3-phase
  • Voltage Isolation: 2000Vrms
  • Supply and Demand Status: Limited
  • Applications: Automotive, lighting, and sensing & instrumentation
