Same model may have multiple batches, images only for reference.

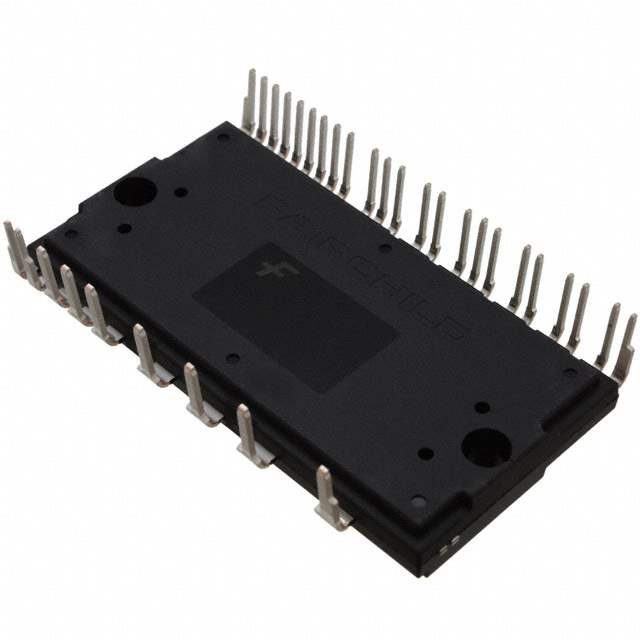

FSAM75SM60A Real Image
Same model may have multiple batches, images only for reference.

FSAM75SM60A

Part No FSAM75SM60A
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description MODULE SPM 600V 75A S32DA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 3 Phase
Current 75A
Voltage 600V
Isolation Voltage 2500Vrms
Dimension 32-PowerDIP Module (1.370", 34.80mm)
Win Source Part Number 204332-FSAM75SM60A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 48
Ultra Librarian 3D Model Ultra Librarian FSAM75SM60A CAD Model

Description

The FSAM75SM60A is an IGBT module from Fairchild/ON Semiconductor. It has a voltage rating of 600V and a current rating of 75A. The configuration is 3 phase with an isolation voltage of 2500Vrms. The package type is a 32-PowerDIP module (1.370", 34.80mm). The supply and demand status is limited with a quantity per package of 48.
