5943001601 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

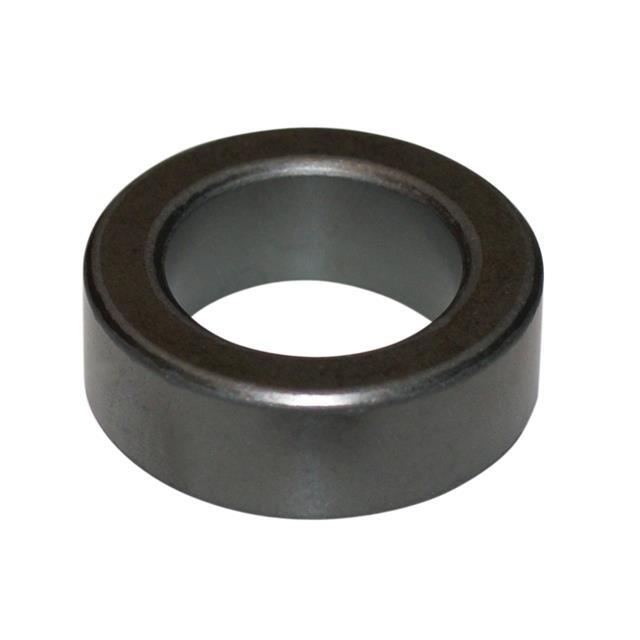

5943001601

Part No 5943001601
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE TOROID 43
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type Toroid
Material 43
Tolerance ±20%
Gap Ungapped
Initial Permeability (µi) 800
Effective Length (le) mm 76.0
Effective Area (Ae) mm2 47.0
Effective Magnetic Volume (Ve) mm3 3530.0
Finish Uncoated
Width 0.311\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528090-5943001601
Ultra Librarian 3D Model Ultra Librarian 5943001601 CAD Model

Description
