Same model may have multiple batches, images only for reference.

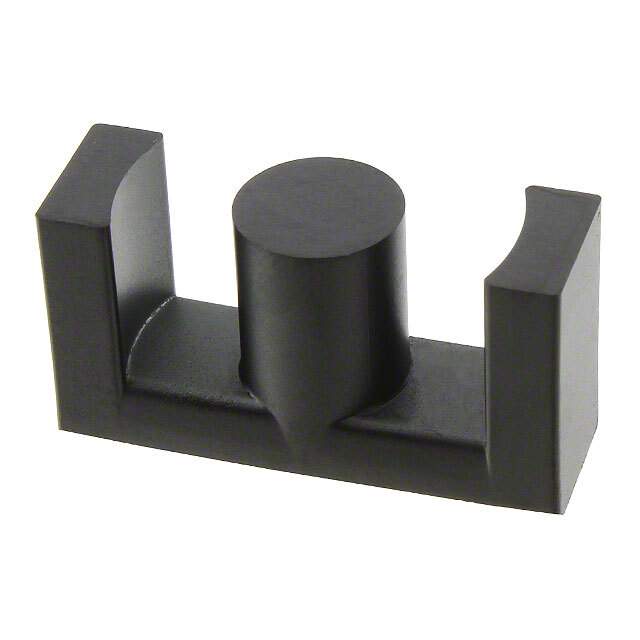

B66358G0000X197 Real Image
Same model may have multiple batches, images only for reference.

B66358G0000X197

Part No B66358G0000X197
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE ETD N97 1PC / Uncoated N97 Ferrite Core ETD Type 1.205" (30.60mm) Length 0.386" (9.80mm) Width Diameter 0.630" (16.00mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components>Ferrite Cores
Mfr EPCOS - TDK Electronics
Series ETD29/16/10
Package Box
Core Type ETD
Supplier Device Package ETD 29 x 16 x 10
Material N97
Gap Ungapped
Finish Uncoated
Height 0.630" (16.00mm)
Length 1.205" (30.60mm)
Width 0.386" (9.80mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Other Names 495-75921,B66358GX197,B66358GX197-ND,B66358G X197
Standard Package 300
Win Source Part Number 1047857-B66358G0000X197
Ultra Librarian 3D Model Ultra Librarian B66358G0000X197 CAD Model

Description

This EPCOS (TDK) ferrite core is a part of the ETD29/16/10 series and is made of N97 material.

  • Series: ETD29/16/10
  • Material: N97
  • Core Type: Ungapped
  • Coating: Uncoated
  • Length: 1.205 inches (30.60mm)
  • Height: 0.630 inches (16.00mm)
  • Width: 0.386 inches (9.80mm)
  • Package: Box
  • Standard Package: 300
  • Tolerance: Not Specified
  • Supplier Device Package: ETD 29 x 16 x 10
  • Alternative Parts (Cross-Reference): B66358G0000X197B66358G X197 and B66358GX197
  • MSL Level: Not Applicable
  • REACH: Unaffected
  • HTSUS: 8504.90.9630
