Same model may have multiple batches, images only for reference.

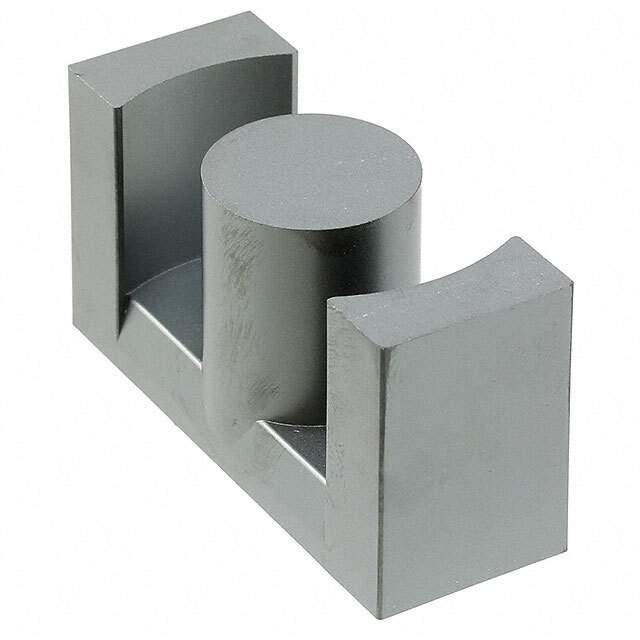

B66397G0000X197 Real Image
Same model may have multiple batches, images only for reference.

B66397G0000X197

Part No B66397G0000X197
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE ETD N97 1PC / Uncoated N97 Ferrite Core ETD Type 2.354" (59.80mm) Length 0.870" (22.10mm) Width Diameter 1.228" (31.20mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components>Ferrite Cores
Mfr EPCOS - TDK Electronics
Series ETD59/31/22
Package Box
Core Type ETD
Supplier Device Package ETD 59 x 31 x 22
Material N97
Gap Ungapped
Finish Uncoated
Height 1.228" (31.20mm)
Length 2.354" (59.80mm)
Width 0.870" (22.10mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Other Names 495-5507,B66397GX197,B66397G X197,B66397GX197-ND
Standard Package 40
Win Source Part Number 1047784-B66397G0000X197
Ultra Librarian 3D Model Ultra Librarian B66397G0000X197 CAD Model

Description

The EPCOS (TDK) B66397G0000X197 is a ferrite core that is designed to provide reliable performance in various electronic devices.

  • Series: ETD59/31/22
  • Supply and Demand Status: Balance
  • Length: 2.354" (59.80mm)
  • Height: 1.228" (31.20mm)
  • Width: 0.870" (22.10mm)
  • Package Type: Box
  • Core Type: ETD
  • Manufacturer Part Number: B66397G0000X197
  • Win Source Part Number: 1047784-B66397G0000X197
