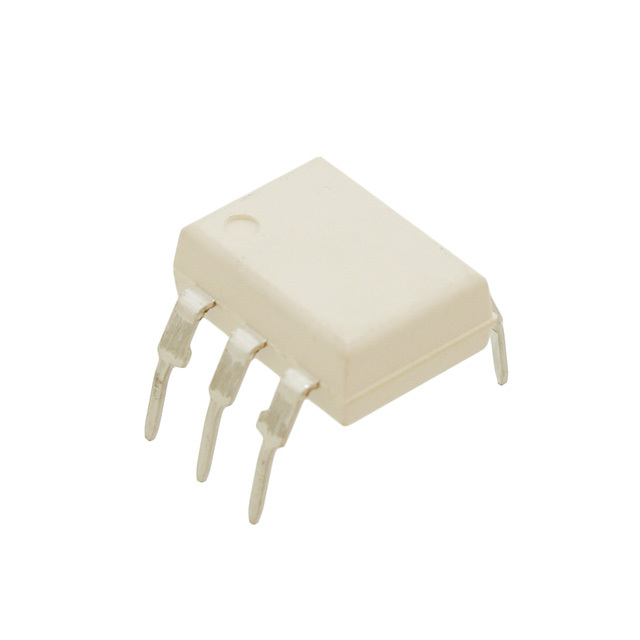

Same model may have multiple batches, images only for reference.
CNY17F-4M Everlight Electronics Co Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CNY17F-4M

Part No CNY17F-4M
Manufacturer Everlight Electronics Co Ltd
Catalog Isolators
Description OPTOISOLATOR 5KV 1CH TRANS 6-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 160% @ 10mA
Current Transfer Ratio (Max) 320% @ 10mA
Turn On / Turn Off Time (Typ) 10µs, 9µs
Rise / Fall Time (Typ) 6µs, 8µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Voltage - Forward (Vf) (Typ) 1.65V (Max)
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 300mV
Operating Temperature -55°C ~ 110°C
Mounting Type Through Hole
Package / Case 6-DIP (0.400", 10.16mm)
Supplier Device Package 6-DIP
Ultra Librarian 3D Model Ultra Librarian CNY17F-4M CAD Model
