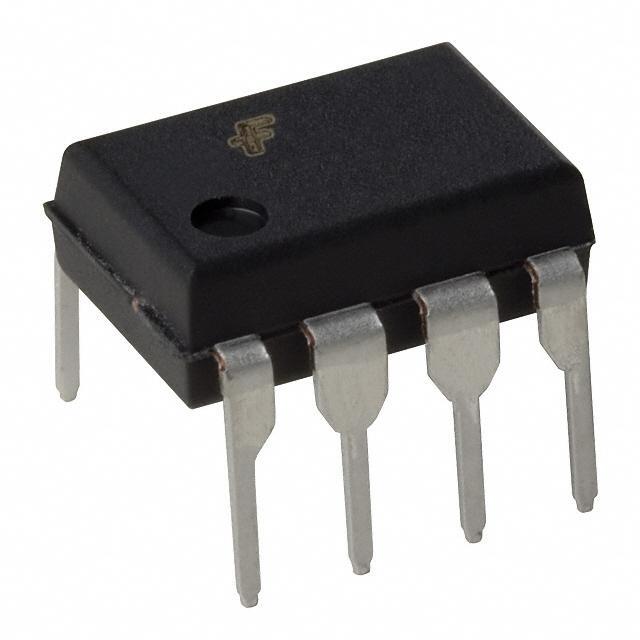

HCPL4503M ON Semiconductor – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HCPL4503M

Part No HCPL4503M
Manufacturer ON Semiconductor
Catalog Isolators
Description OPTOISO 5KV TRANS W/BASE 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category IsolatorsOptocouplers, OptoisolatorsTransistor, Photovoltaic Output Optoisolators
Manufacturer onsemi
Packaging Tube
Part Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 19% @ 16mA
Current Transfer Ratio (Max) 50% @ 16mA
Turn On / Turn Off Time (Typ) 250ns, 260ns
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.45V
Current - DC Forward (If) (Max) 25 mA
Operating Temperature -40°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Base Product Number HCPL4503
Ultra Librarian 3D Model Ultra Librarian HCPL4503M CAD Model
