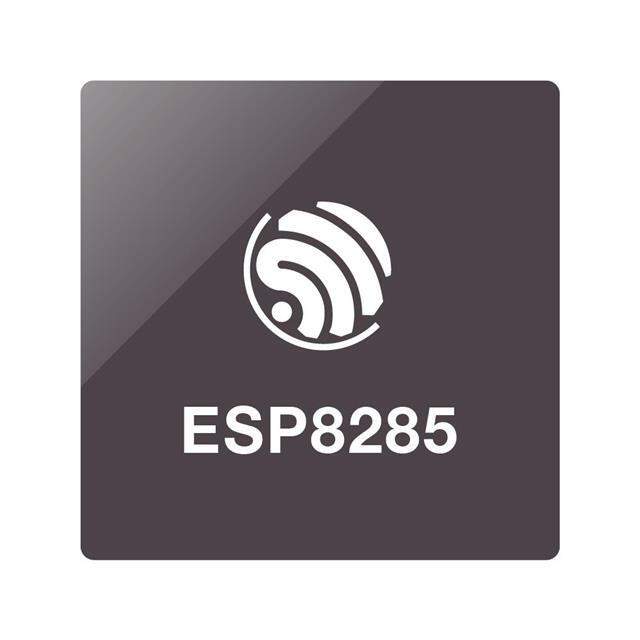

ESP8285H16 Real Image
Same model may have multiple batches, images only for reference.

ESP8285H16

Part No ESP8285H16
Manufacturer Espressif
Catalog RF Receivers
Description IC RF TXRX+MCU WIFI 32VFQFN / IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 32-VFQFN Exposed Pad
Datasheet
ESP8285H16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Espressif Systems
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.4GHz
Data Rate (Max) 54Mbps
Power - Output 20dBm
Sensitivity -91dBm
Serial Interfaces I2C, I2S, SPI, UART
GPIO 8
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 50mA ~ 56mA
Current - Transmitting 120mA ~ 170mA
Mounting SMD (SMT)
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Base Product Number ESP8285
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8542.39.0001
Other Names 1904-1002-2-ND,1904-1002-1-ND,ESP8285-ATUB00,1904-ESP8285H16TR,1904-1002-2,1904-1002-1,1904-ESP8285H16CT,1904-1002-6-ND,ESP8285,1904-1002-6,1904-ESP8285H16DKR
Standard Package 5,000
Win Source Part Number 1057999-ESP8285H16
Ultra Librarian 3D Model Ultra Librarian ESP8285H16 CAD Model

Description

The 1057999-ESP8285H16 is a WiFi RF transceiver IC used for a variety of applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: WiFi RF Transceiver IC
  • Frequency: 2.4GHz
  • Protocol: 802.11b/g/n
  • Power Output: 20dBm
  • Sensitivity: -91dBm
  • Data Rate: 54Mbps
  • Voltage Supply: 2.7V to 3.6V
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Supplier Device Package: 32-QFN (5x5)
