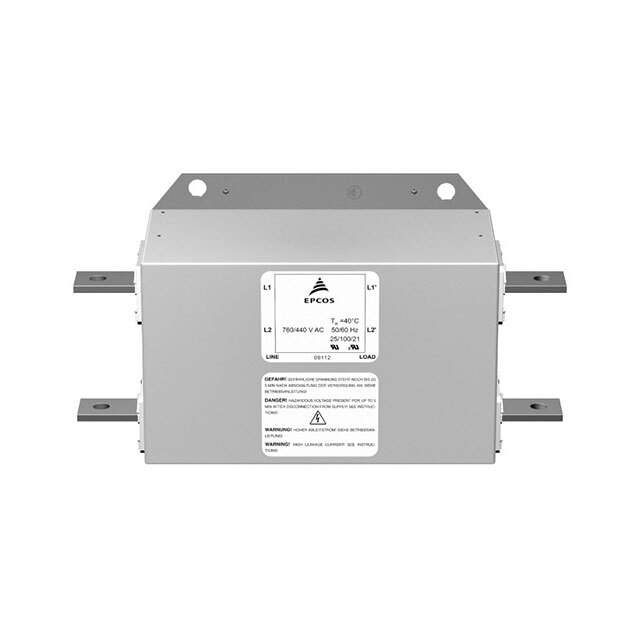

B84142J0180S081 Real Image
Same model may have multiple batches, images only for reference.

B84142J0180S081

Part No B84142J0180S081
Manufacturer EPCOS (TDK)
Catalog Power Line Filter Modules
Description LINE FLTR 1KVDC 600VAC 180A CHAS
Datasheet
B84142J0180S081 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Status Active
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 1000V (1kV)
Voltage - Rated AC 600V
Current 180A
Applications Photovoltaic Inverter
Approvals cUR, UR
Temperature Range - Operating -25°C to 100°C
Mounting Chassis Mount
Termination Style Terminal Post
Win Source Part Number 1005507-B84142J0180S081
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B84142J0180S081 CAD Model

Description

The EPCOS (TDK) B84142J0180S081 is a single-phase, two-stage filter designed for photovoltaic inverter applications.

  • Current Rating: 180A
  • Voltage Rating: 1000V DC and 600V AC
  • Mounting: Chassis Mount
  • Termination Style: Terminal Post
  • Approvals: cUR/UR
  • Temperature Range: -25°C to 100°C
  • Popularity: Medium
