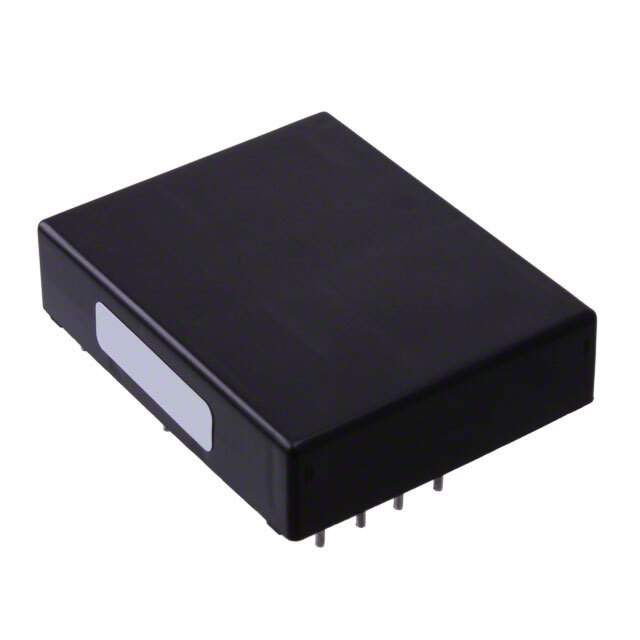

FLTR100V20 Real Image
Same model may have multiple batches, images only for reference.

FLTR100V20

Part No FLTR100V20
Manufacturer ABB Embedded Power
Catalog Power Line Filter Modules
Description 75 Vdc Input Maximum, 20 A Maximum | LINE FILTER 75VDC 20A TH
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer ABB Embedded Power
Status Obsolete
Filter Type Single Phase
Configuration Three Stage
Voltage - Rated DC 75V
Current 20A
Applications General Purpose
Approvals CE, CSA, UL, VDE
Temperature Range - Operating -40°C ~ 100°C
Mounting Style Through Hole
Termination Style PC Pins
Manufacturer Pack Quantity 80
MSL Level Not Applicable
Win Source Part Number 1174416-FLTR100V20
Manufacturer Homepage www.lineagepower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FLTR100V20 CAD Model

Description

The FLTR100V20 is a high-quality filter designed for use in a variety of applications. Manufactured by ABB Embedded Power.

  • Configuration: three-stage
  • Filter Type: single-phase
  • Current: 20A
  • Voltage: 75V DC
  • Approvals: CE, CSA, UL, and VDE
  • Application: general-purpose
  • Mounting Style: through-hole
  • Termination: PC pins
  • Status: obsolete
  • Popularity: medium
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 80
