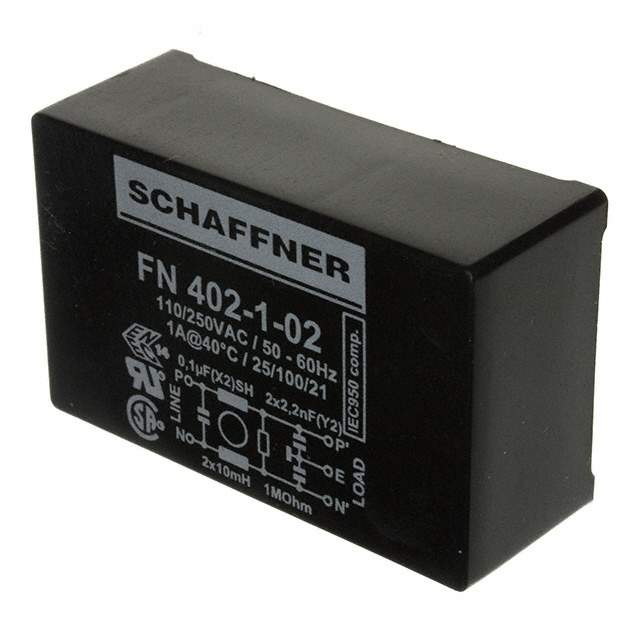

FN402-1-02 Real Image
Same model may have multiple batches, images only for reference.

FN402-1-02

Part No FN402-1-02
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 1A TH
Datasheet
FN402-1-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Series FN 402
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 1A
Frequency - Operating DC ~ 400Hz
Applications General
Approvals CSA, ENEC, UR
Operating Temperature Range -25°C ~ 100°C
Mounting Style Through Hole
Termination Style PC Pins
Inductance 10mH
Win Source Part Number 774648-FN402-1-02
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian FN402-1-02 CAD Model

Description

The Schaffner EMC Inc. FN 402 Series 774648-FN402-1-02 is a Single Phase Single Stage Filter. Schaffner EMC Inc.

  • Termination Style: PC Pins
  • Mounting Style: Through hole
  • Inductance: 10mH
  • Current Rating: 1A
  • Operating Temperature Range: -25°C to 100°C
  • Approvals: CSA, ENEC, and UR
  • Supply and Demand Status: Limited
