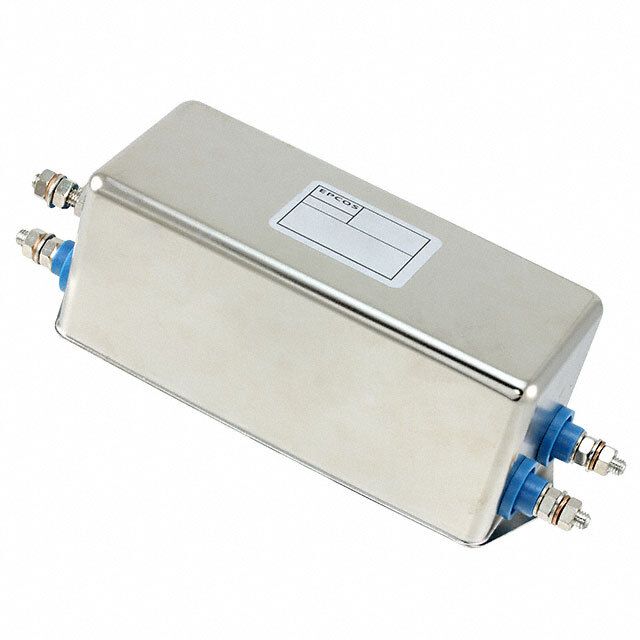

Same model may have multiple batches, images only for reference.

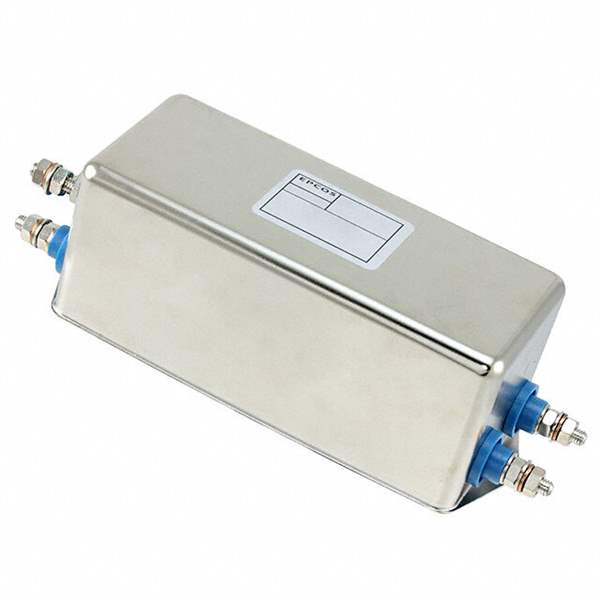

B84113H0000G136 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B84113H0000G136

Part No B84113H0000G136
Manufacturer EPCOS (TDK)
Catalog Power Line Filter Modules
Description Single Phase EMC/EMI Line Filter 36 A 250V 250V 50/60Hz Two Stage Threaded Post (M5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B84113
Packaging Bulk
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 36 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency cUR, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Threaded Post (M5)
Inductance 500µH
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482447-B84113H0000G136
Ultra Librarian 3D Model Ultra Librarian B84113H0000G136 CAD Model
