Same model may have multiple batches, images only for reference.

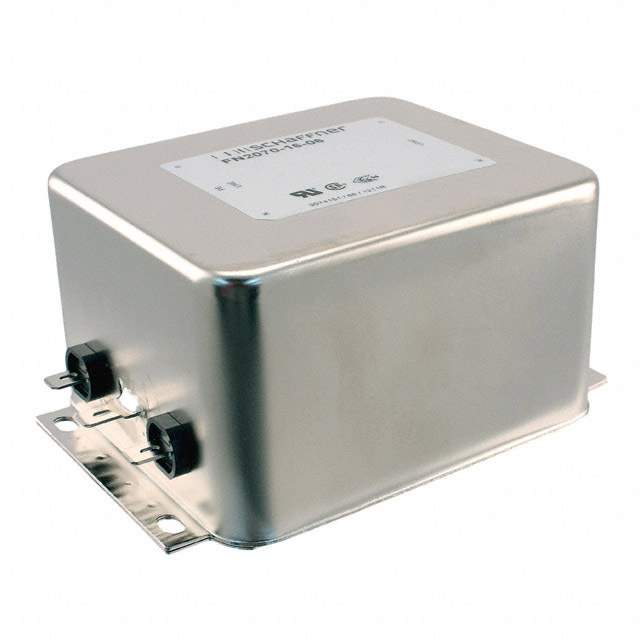

FN2070-16-06 Real Image
Same model may have multiple batches, images only for reference.

FN2070-16-06

Part No FN2070-16-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 110/250VAC 16A CHASS
Datasheet
FN2070-16-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features Single Phase EMC/EMI Line Filter 110V, 250VAC DC ~ 400Hz Two Stage Quick Connect
Manufacturer Schaffner EMC Inc.
Series FN 2070
Package Tray
Operating Temperature Range -25°C ~ 100°C
Mounting Chassis Mount
Family Name FN2070
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number FN20701606, 800579, 291-607, FN2070 -16 -06, 817-1311
Quantity per package 10
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919205-FN2070-16-06
Ultra Librarian 3D Model Ultra Librarian FN2070-16-06 CAD Model

Description

The Schaffner EMC Inc. FN2070-16-06 is a single-phase EMC/EMI line filter for 110V, 250VAC DC ~ 400Hz two-stage quick connect.

  • Application: Filters
  • Popularity: High
  • Package: Tray
  • Quantity per Package: 10
  • HTSUS Code: 8536.30.8000
  • Estimated Production Lead Time: 9 weeks
