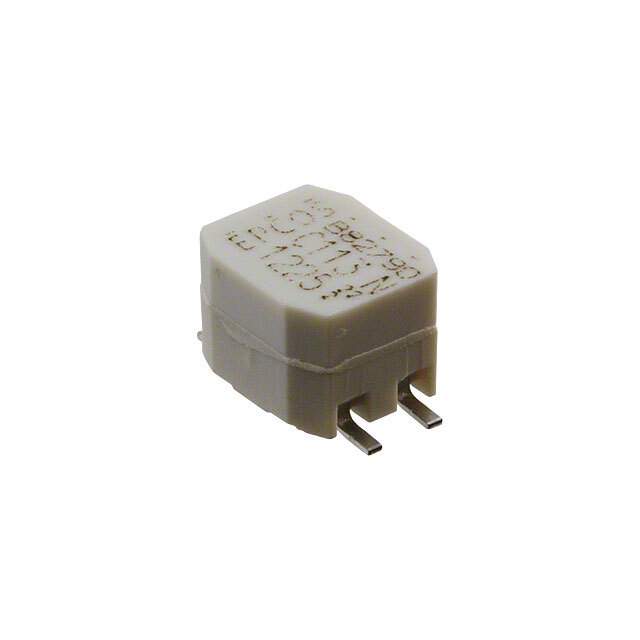

B82790C0113N201 Real Image
Same model may have multiple batches, images only for reference.

B82790C0113N201

Part No B82790C0113N201
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 11UH 500MA 2LN SMD AEC-Q200
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2 Line Common Mode Choke Surface Mount 500mA DCR 80mOhm (Typ)
Manufacturer EPCOS (TDK)
Series B82790
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 Gull Wing
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number B82790C 113N201, 495-4413-6, 495-4413-2, B82790C113N201, 495-4413-1
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912722-B82790C0113N201
Ultra Librarian 3D Model Ultra Librarian B82790C0113N201 CAD Model

Description

The EPCOS (TDK) 912722-B82790C0113N201 is a B82790 series common mode choke with a surface-mount package.

  • Manufacturer: EPCOS (TDK)
  • Part Number: 912722-B82790C0113N201
  • Series: B82790 series
  • Type: Common Mode Choke
  • Mounting: Surface-mount
  • Function: Filtering against electromagnetic interference (EMI)
  • Lines: 2-line configuration
  • Current Rating: 500mA
  • DCR: 80mOhm (Typ)
  • Operating Temperature Range: -40°C to 125°C
  • Packaging: Reel - TR
  • Package Quantity: 1500
