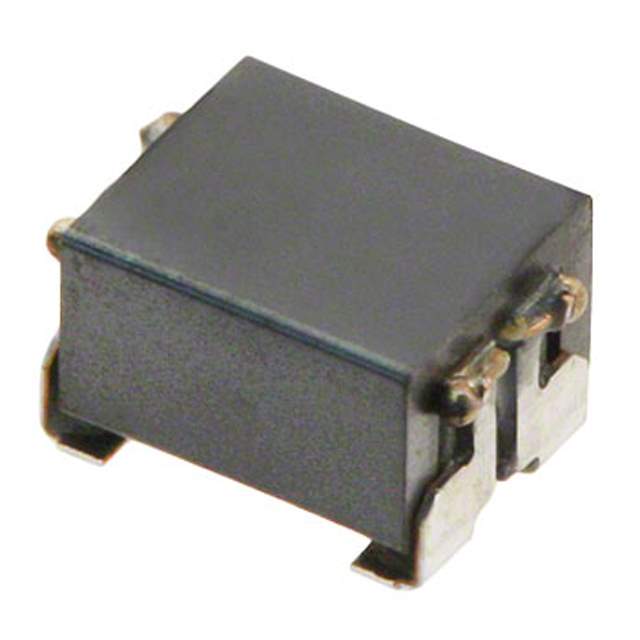

B82789C223H2 Real Image
Same model may have multiple batches, images only for reference.

B82789C223H2

Part No B82789C223H2
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN SMD AEC-Q200
Datasheet
B82789C223H2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 22μH @ 100kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 580 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -55°C to 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.118" (3.00mm)
Dimension Horizontal, 4 L-Lead
Win Source Part Number 000166-B82789C223H2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82789C223H2 CAD Model

Description

Product Description

The B82789C223H2 common mode choke is specifically engineered for applications needing robust interference suppression. Featuring high reliability, it excels in reducing noise in demanding electronic circuits.

Applications

  • Home Automation Systems
  • Inverters
  • Consumer Electronics
  • Industrial Controls

Features and Benefits

  • Enhanced Suppression: Effective across a wide bandwidth.
  • Durability: Capable of withstanding varied environmental conditions.
  • Compact Form: Ease of integration into compact designs.

This product is ideal for engineers requiring noise reduction in compact spaces, maintaining performance integrity across temperatures from -40°C to +125°C.
