Same model may have multiple batches, images only for reference.

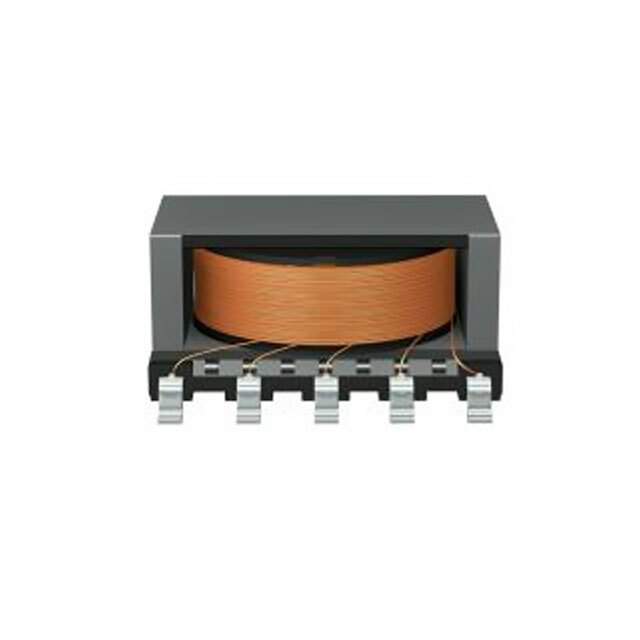

B78334B1034A003 Real Image
Same model may have multiple batches, images only for reference.

B78334B1034A003

Part No B78334B1034A003
Manufacturer EPCOS (TDK)
Catalog Switching Converter, SMPS Transformers
Description XFRMER DC/DC CONV SMD / For For DC/DC Converters SMPS Transformer 1000Vrms Isolation Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr EPCOS - TDK Electronics
Package Tape & Reel
Type For DC/DC Converters
Voltage - Isolation 1000Vrms
Inductance @ Frequency 1.08mH @ 10kHz
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.472" L x 0.535" W (12.00mm x 13.60mm)
Height - Seated (Max) 0.252" (6.40mm)
Footprint 0.480" L x 0.535" W (12.20mm x 13.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 495-76639-6,B78334B1034A003-ND,B78334B1034A 3,B78334B1034A3,495-76639-2,495-76639-1
Standard Package 600
Win Source Part Number 981528-B78334B1034A003
Ultra Librarian 3D Model Ultra Librarian B78334B1034A003 CAD Model

Description

The EPCOS (TDK) 981528-B78334B1034A003 transformer is a tape and reel packaged component that is ideal for DC/DC converters.

  • Package: Tape and Reel
  • Application: DC/DC Converters
  • Inductance: 1.08mH @ 10kHz
  • Isolation Voltage: 1000Vrms
  • Dimension: 0.472" L x 0.535" W (12.00mm x 13.60mm)
  • Seated Height: 0.252" (6.40mm)
  • Mounting: Surface-Mountable
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Popularity: Low
