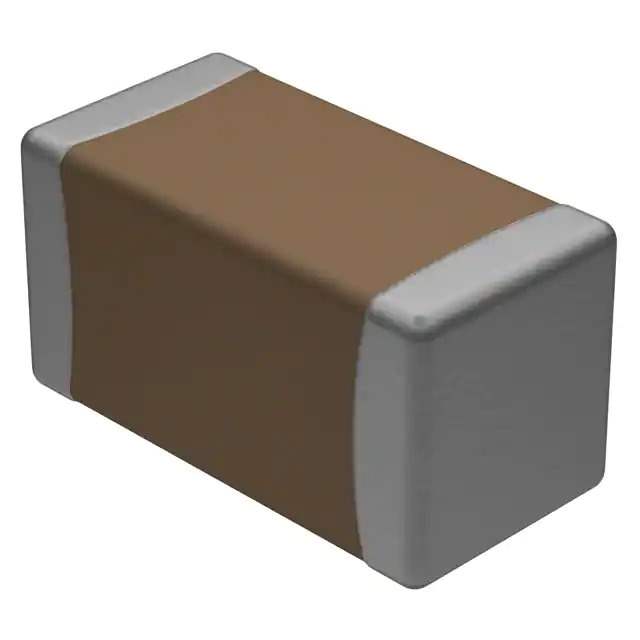

VJ1206Y562KBCAT4X Real Image
Same model may have multiple batches, images only for reference.

VJ1206Y562KBCAT4X

Part No VJ1206Y562KBCAT4X
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 5600PF 200V X7R 1206 / 5600 pF ±10% 200V Ceramic Capacitor X7R 1206 (3216 Metric)
Datasheet
VJ1206Y562KBCAT4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay
Series VJ OMD
Package Tape & Reel
Product Status Active
Capacitance 5600 pF
Tolerance ±10%
Voltage - Rated 200V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Soft Termination, High Voltage
Applications Boardflex Sensitive
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Size / Dimension 0.132" L x 0.063" W (3.35mm x 1.60mm)
Thickness (Max) 0.067" (1.70mm)
Base Product Number VJ1206
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 902583-VJ1206Y562KBCAT4X
Ultra Librarian 3D Model Ultra Librarian VJ1206Y562KBCAT4X CAD Model

Description

The VJ1206Y562KBCAT4X is a ceramic capacitor from Vishay's VJ OMD series.

  • Features: Soft Termination, High Voltage
  • Package: 1206 (3216 Metric)
  • Size Dimension: 0.132" L x 0.063" W (3.35mm x 1.60mm)
  • Application: Boardflex Sensitive
  • Capacitance: 5600 pF
  • Tolerance: ±10%
  • Rated Voltage: 200V
  • Temperature Coefficient: X7R
  • Product Status: Active
  • Operating Temperature Range: -55°C to 125°C
