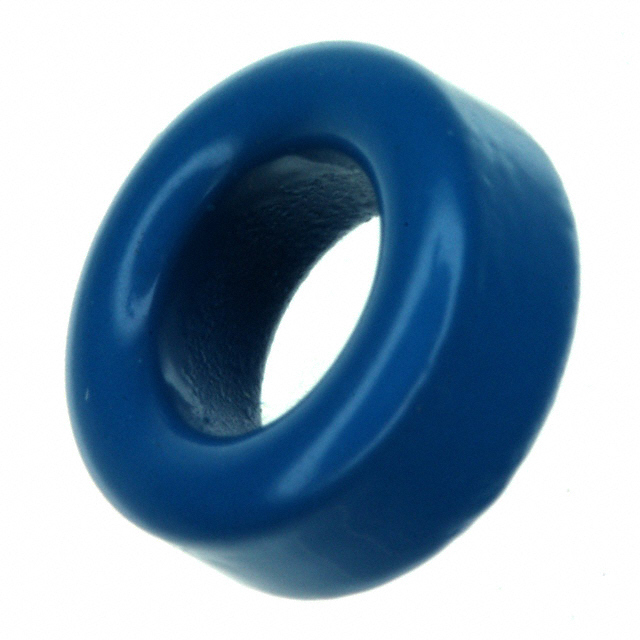

Same model may have multiple batches, images only for reference.
B64290L0668X087 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290L0668X087

Part No B64290L0668X087
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Epoxy N87 Ferrite Core Toroid Type Length Width 1.551" (39.40mm) Diameter 0.543" (13.80mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TX38/19/13
Packaging Box
Core Type Toroid
Material N87
Diameter 1.551" (39.40mm)
Inductance Factor (Al) 3.87 µH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2200
Core Factor (ΣI/A) mm⁻¹ 0.71
Effective Length (le) mm 82.97
Effective Area (Ae) mm2 116.2
Effective Magnetic Volume (Ve) mm3 9644.0
Finish Epoxy
Height 0.543" (13.80mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489448-B64290L0668X087
Ultra Librarian 3D Model Ultra Librarian B64290L0668X087 CAD Model
