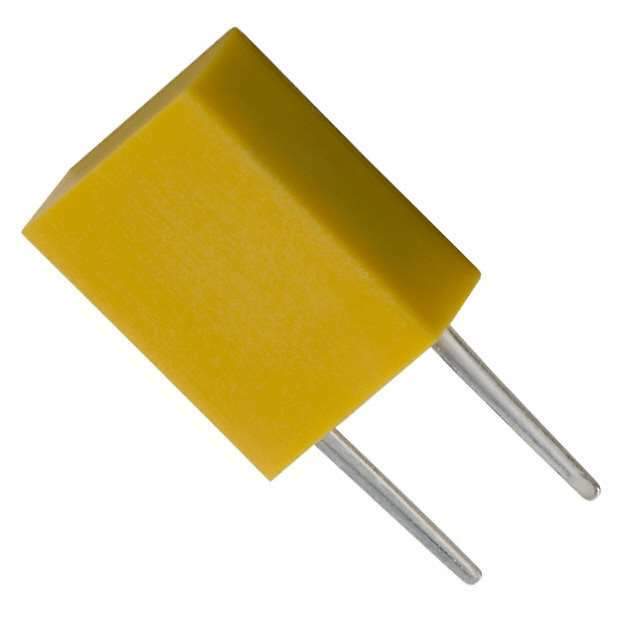

ZTB455E Real Image
Same model may have multiple batches, images only for reference.

ZTB455E

Part No ZTB455E
Manufacturer ECS Inc.
Catalog Resonators
Description CERAMIC RES 455.0000KHZ T/H / CERAMIC RESONATORS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer ECS Inc.
Packaging Bulk
Type Ceramic
Frequency 455kHz
Frequency Stability ±0.3%
Frequency Tolerance ±2kHz
Temperature Range - Operating -20°C ~ 80°C
Mounting Style Through Hole
Manufacturer Package Radial, Box - 2 Lead, 5.00mm Pitch
Dimension 0.276" L x 0.138" W (7.00mm x 3.50mm)
Height 0.354" (9.00mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808566-ZTB455E
Ultra Librarian 3D Model Ultra Librarian ZTB455E CAD Model

Description

The ZTB455E from ECS Inc. is a ceramic resonator.

  • Frequency: 455kHz
  • Mounting Style: through hole
  • Height: 0.354" (9.00mm)
  • Frequency Stability: ±0.3%
  • Frequency Tolerance: ±2kHz
  • Temperature Range: -20ŶC to 80ŶC
  • Dimension: 0.276" L x 0.138" W (7.00mm x 3.50mm)
  • Manufacturer Package: radial, box - 2 lead, 5.00mm pitch.
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
