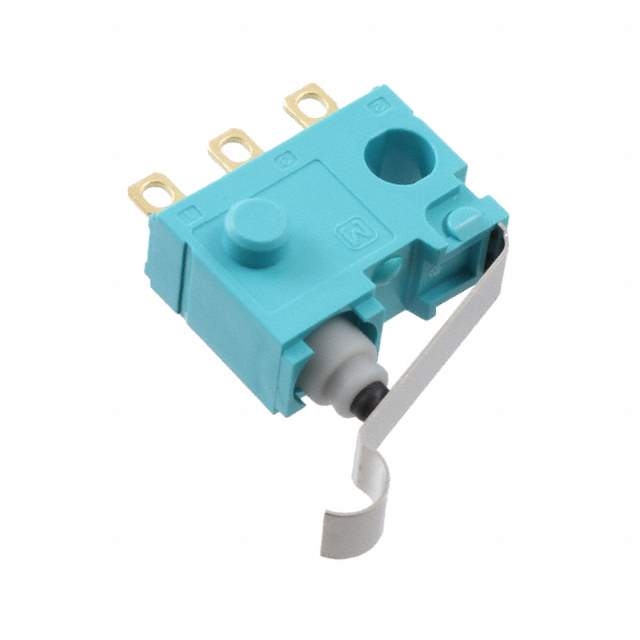

ASQ10418 Real Image
Same model may have multiple batches, images only for reference.

ASQ10418

Part No ASQ10418
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Panasonic Electric Works
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Chassis Mount
Termination Style Solder Lug
Operating Force 153gf
Overtravel 0.110" (2.8mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.472" (12.0mm)
Electrical Life 200,000 Cycles
Base Product Number ASQ104
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number ASQ10418-ND,255-6482
Standard Package 1,000
Win Source Part Number 1323793-ASQ10418
Ultra Librarian 3D Model Ultra Librarian ASQ10418 CAD Model

Description

The Panasonic Electric Works 1323793-ASQ10418 is a SPDT limit switch that is widely used in various electronic applications.

  • Mounting: Chassis Mount
  • Actuator Type: Simulated Roller
  • Switch Function: On-Mom
  • Electrical Life: 200,000 cycles
  • Operating Force: 153gf
  • RoHS Compliant: Yes
  • Current Rating: 100mA (DC)
