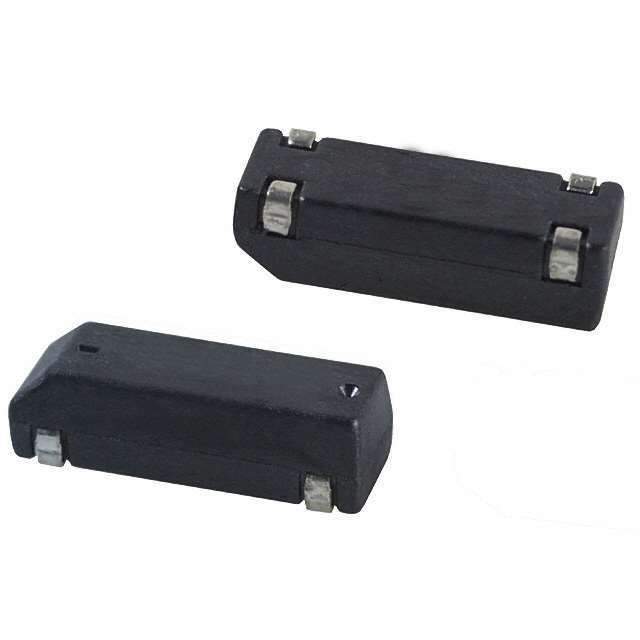

ECS-135.0-18-7SX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-135.0-18-7SX-TR

Part No ECS-135.0-18-7SX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 13.5000MHZ 18PF SMD / 13.5 MHz ±30ppm Crystal 18pF 50 Ohms 4-SOJ, 9.40mm pitch
Datasheet
ECS-135.0-18-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series ECX-3SX
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 13.5 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 9.40mm pitch
Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC2019-2,XC2019-1,XC2019-6
Standard Package 1,000
Win Source Part Number 1217103-ECS-135.0-18-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-135.0-18-7SX-TR CAD Model

Description

The ECX-3SX MHz Crystal is the perfect component for electronic devices that require precise frequency control.

  • Frequency: 13.5 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR: 50 Ohms
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Package: 4-SOJ
  • Pitch: 9.40mm
  • Temperature Range: -10°C to 70°C
  • Dimensions: 0.492" L x 0.181" W (12.50mm x 4.60mm)
  • MSL Level: Unlimited
  • Manufacturer: ECS Inc.
  • Lifecycle: Not recommended for new designs
