Same model may have multiple batches, images only for reference.

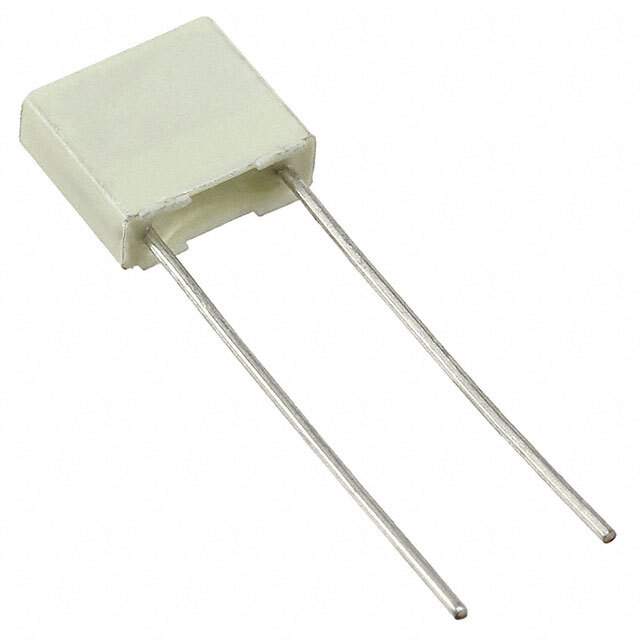

SMR5222J63J01L16.5CBULK Real Image
Same model may have multiple batches, images only for reference.

SMR5222J63J01L16.5CBULK

Part No SMR5222J63J01L16.5CBULK
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMR
Package Bulk
Capacitance 2200 pF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications General Purpose
Features High Temperature
Base Product Number SMR5
Other Names 399-13049,F211JF222J063ALG5C,F211JF222(1)063(2)
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302363-SMR5222J63J01L16.5CBULK
Ultra Librarian 3D Model Ultra Librarian SMR5222J63J01L16.5CBULK CAD Model

Description

The KEMET SMR5 film capacitor is a high-temperature capacitor that is ideal for use in general-purpose applications.

  • Capacitance: 2200 pF
  • Tolerance: ±5%
  • Voltage Rating: 40V AC and 63V DC
  • Package: Radial
  • Height: 0.256 inches
  • Length: 0.283 inches
  • Dielectric Material: Polyphenylene Sulfide (PPS), Metallized
  • Mounting Type: Through Hole
  • Package: Bulk
  • Temperature Range: -55°C to 150°C
