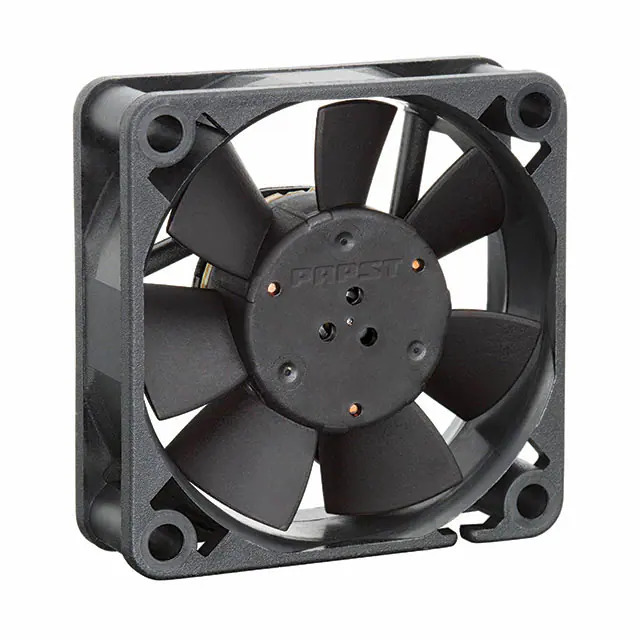

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 500F
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 12.0 CFM (0.336m³/min)
Static Pressure -
Bearing Type Sintec
Fan Type Tubeaxial
Features -
Noise 30.0dB(A)
Power (Watts) 1 W
RPM 5000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.055 lb (24.95 g)
Current Rating (Amps) -
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Lifetime @ Temp. 50000 Hrs @ 20°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368413-512F
Ultra Librarian 3D Model Ultra Librarian 512F CAD Model

Description

The 500F series DC brushless fan from ebm-papst Inc. is a reliable and efficient cooling solution for various electronic applications.

  • Rated Voltage: 12VDC
  • Power Rating: 1W
  • Size: 50mm x 50mm
  • Noise Level: 30.0dB(A)
  • RPM: 5000
  • Frame: Polybutylene Terephthalate (PBT) reinforced with fiberglass
  • Blade: Polyamide (PA), Nylon, and fiberglass
  • Lifetime: 50,000 hours @ 20°C
  • Approvals: CE, CSA, UL, and VDE
