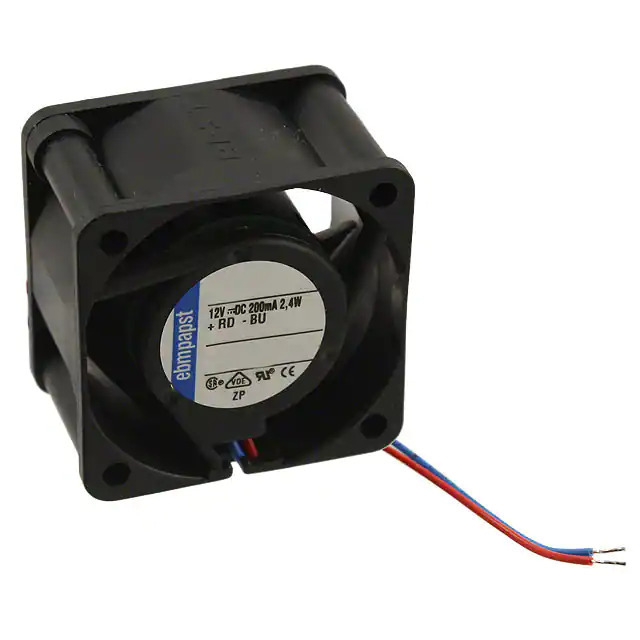

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 400J
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 25.40mm
Air Flow 11.2 CFM (0.314m³/min)
Static Pressure -
Bearing Type Ball
Fan Type Tubeaxial
Features -
Noise 39.0dB(A)
Power (Watts) 2.4 W
RPM 10300 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, UL, VDE
Weight 0.111 lb (50.35 g)
Current Rating (Amps) -
Voltage Range 8 ~ 14VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Lifetime @ Temp. 60000 Hrs @ 20°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368456-412J
Ultra Librarian 3D Model Ultra Librarian 412J CAD Model

Description

The 400J series DC brushless fan from ebm-papst Inc. is a high-performance cooling solution for electronic applications.

  • Rated Voltage: 12VDC
  • Power Rating: 2.4W
  • Size: 40mm x 40mm
  • Noise Level: 39.0dB(A)
  • RPM: 10300
  • Frame Material: Polybutylene Terephthalate (PBT) reinforced with fiberglass
  • Bearing Type: Ball Bearing
  • Lifetime: 60,000 hours @ a temperature of 20°C
  • Approvals: CSA, UL, and VDE
  • Suitable for: Cooling electronic components in various applications
