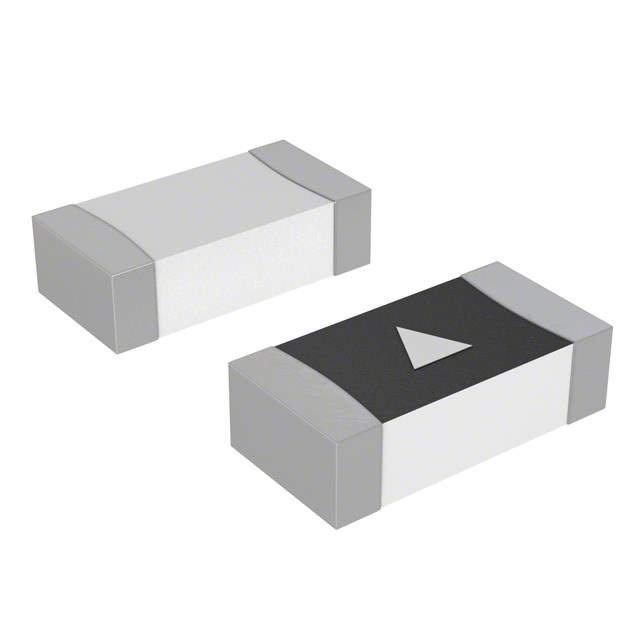

TR/3216LV1-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216LV1-R

Part No TR/3216LV1-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 1A 125VAC/VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 14 Weeks
Features AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Manufacturer Eaton Bussmann
Series CHIP 3216LV
Package Reel - TR
Operating Temperature Range -65°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 283-5283-6, TR-3216LV1-R, 283-5283-1, 283-5283-2, TR/3216LV1-R-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937521-TR/3216LV1-R
Ultra Librarian 3D Model Ultra Librarian TR/3216LV1-R CAD Model

Description

The Eaton Bussmann 937521-TR/3216LV1-R is a surface mount 1206 (3216 Metric) fuse that provides AC DC circuit protection.

  • Mounting: Surface Mount
  • Package: 1206 (3216 Metric)
  • Fuse Style: Cartridge-style (not included)
  • Mounting: Board Mountable
  • Series: CHIP 3216LV
  • Category: Circuit Protection
  • ECCN: EAR99
  • Popularity: High
  • Quantity per package: 3000 fuses
  • Estimated Production Lead Time: 14 weeks
  • HTSUS Code: 8536.10.0040
  • Other Part Numbers: 283-5283-6, TR-3216LV1-R, 283-5283-1, 283-5283-2, and TR/3216LV1-R-ND
