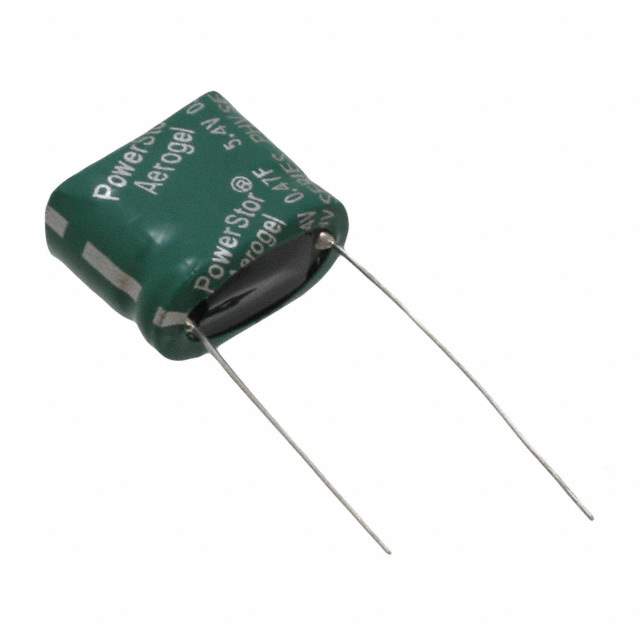

PHV-5R4V474-R Real Image
Same model may have multiple batches, images only for reference.

PHV-5R4V474-R

Part No PHV-5R4V474-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 470MF -10% +30% 5.4V T/H / 470 mF (EDLC) Supercapacitor 5.4 V Radial, Can 400mOhm @ 100Hz 1000 Hrs @ 65°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series PHV
Package Bulk
Capacitance 470 mF
Tolerance -10%, +30%
Voltage - Rated 5.4 V
ESR (Equivalent Series Resistance) 400mOhm @ 100Hz
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.465" (11.80mm)
Dimension 0.681" L x 0.354" W (17.30mm x 9.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Temperature Range - Operating -40°C ~ 65°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names 283-4191,PHV5R4V474R
Standard Package 100
Win Source Part Number 1063912-PHV-5R4V474-R
Ultra Librarian 3D Model Ultra Librarian PHV-5R4V474-R CAD Model

Description

The PHV series electric double layer capacitors (EDLC), also known as supercapacitors, are designed to provide high capacitance values in a compact package.

  • Capacitance: 470 mF
  • Voltage Rating: 5.4 V
  • ESR: 400mOhm @ 100Hz
  • Lifetime @ Temperature: 1000 Hrs @ 65°C
  • Termination: PC pins
  • Mounting: Through-hole
  • Package/Case: Radial can
  • Dimensions: 0.681" L x 0.354" W (17.30mm x 9.00mm)
  • Packaging: Bulk
  • Standard Package: 100
  • Alternative parts (cross-reference): EDLSG474H5R5C, EEC-S5R5H474, EDLNF474B5R5C, EECF5R5H474, EEC-F5R5U474, JUMT1474MEDPHV-5R4V474-R, and PHV5R4V474R
