Same model may have multiple batches, images only for reference.

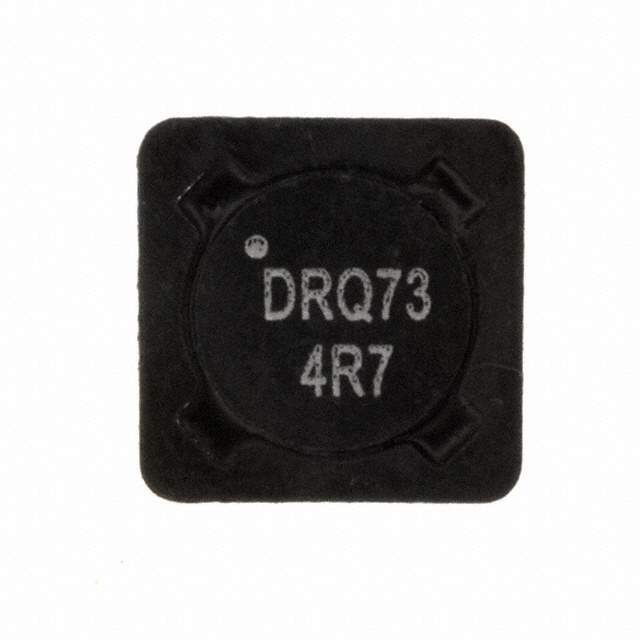

DRQ73-4R7-R Real Image
Same model may have multiple batches, images only for reference.

DRQ73-4R7-R

Part No DRQ73-4R7-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 4.422UH SMD  /  Shielded 2 Coil Inductor Array 17.69 µH Inductance - Connected in Series 4.422 µH Inductance - Connected in Parallel 29.7mOhm DC Resistance (DCR) - Parallel 3.09 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 4.422 µH
Inductance - Connected In Series 17.69 µH
Tolerance ±20%
Current Rating - Parallel 3.09 A
Current Rating - Series 1.55 A
Current Saturation - Parallel 3.78 A
Current Saturation - Series 1.89 A
DC Resistance (DCR) - Parallel 29.7mOhm
DC Resistance (DCR) - Series 118.8mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.140" (3.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ734R7R,513-1241-1,513-1241-2,513-1241-6,DRQ73-4R7-ND,DRQ73-4R7-R-ND,DRQ73-4R7R,DRQ73-4R7
Standard Package 1,350
Win Source Part Number 1002434-DRQ73-4R7-R
Ultra Librarian 3D Model Ultra Librarian DRQ73-4R7-R CAD Model

Description

The DRQ73-4R7-R inductor is a shielded component designed for use in arrays, signal transformers, and other inductor applications.

  • Shielding: Shielded
  • Package/Case: Nonstandard
  • Tolerance: ±20%
  • Height: 0.140" (3.55mm)
  • Series Inductance: 17.69 µH
  • Parallel Inductance: 4.422 µH
  • Series Current Rating: 1.55A
  • Parallel Current Rating: 3.09A
  • Series Current Saturation: 1.89A
  • Parallel Current Saturation: 3.78A
  • Manufacturer: Eaton - Electronics Division
  • RoHS Compliant: Yes
  • ECCN: EAR99
