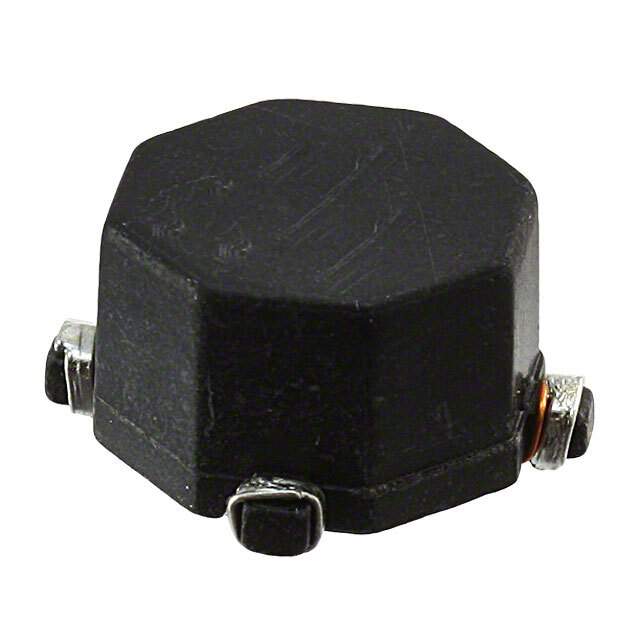

CTX0.68-2A-R Real Image
Same model may have multiple batches, images only for reference.

CTX0.68-2A-R

Part No CTX0.68-2A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 675NH SMD / Unshielded 2 Coil Inductor Array 2.7 µH Inductance - Connected in Series 675 nH Inductance - Connected in Parallel 4.5mOhm Max DC Resistance (DCR) - Parallel 9.4 A Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series OCTA-PAC® PLUS
Package Tape & Reel (TR)
Product Status Obsolete
Number of Coils 2
Inductance - Connected In Parallel 675 nH
Inductance - Connected In Series 2.7 µH
Tolerance ±25%
Current Rating - Parallel 9.4 A
Current Rating - Series 4.68 A
Current Saturation - Parallel 12.5 A
Current Saturation - Series 6.25 A
DC Resistance (DCR) - Parallel 4.5mOhm Max
DC Resistance (DCR) - Series 18mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX0-68-2A-R,CTX0.68-2A,CTX0.68-2A-ND
Standard Package 800
Win Source Part Number 995643-CTX0.68-2A-R
Ultra Librarian 3D Model Ultra Librarian CTX0.68-2A-R CAD Model

Description

The OCTA-PAC® PLUS CTX0.68-2A-R is an inductor array from Eaton - Electronics Division.

  • Applications: Signal transformers and coils
  • Package/Case: Nonstandard
  • Maximum Height: 0.235 inches
  • Dimension: 0.450 inches x 0.450 inches
  • Temperature Range: -40°C to 85°C
  • Win Source part number: 995643-CTX0.68-2A-R
