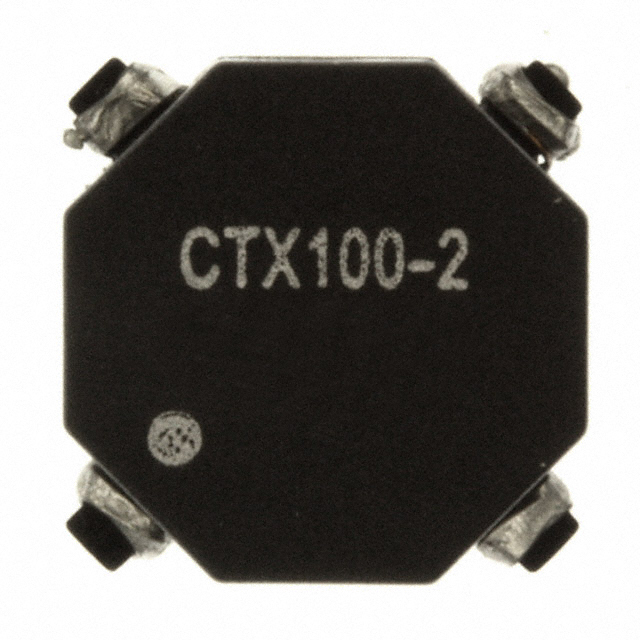

CTX100-2 Eaton Bussmann
Same model may have multiple batches, images only for reference.

CTX100-2

Part No CTX100-2
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 99.45UH SMD
Datasheet
CTX100-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 397.81μH
Inductance - Connected In Parallel 99.45μH
Tolerance ±20%
Current Rating - Parallel 630mA
Current Rating - Series 320mA
DC Resistance (DCR) - Parallel 457 mOhm Max
DC Resistance (DCR) - Series 1.828 Ohm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.235" (5.97mm)
Win Source Part Number 244905-CTX100-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX100-2 CAD Model

Description

Product Description

The CTX100-2 is a versatile electronic component that offers remarkable reliability and adaptability for a range of applications. Its high-quality construction provides longevity and robust performance.

Applications

  • Solar Inverters
  • Battery Chargers
  • Industrial Power Systems
  • Consumer Goods

Features and Benefits

  • Wide Input Voltage Range enhancing flexibility.
  • Compact Form Factor fitting various design configurations.
  • High Reliability under demanding conditions.
  • Cost-Effective without sacrificing quality.

The CTX100-2 is crafted to support wide-ranging electronic needs, delivering superior performance for professionals seeking versatile and dependable components.
