Same model may have multiple batches, images only for reference.

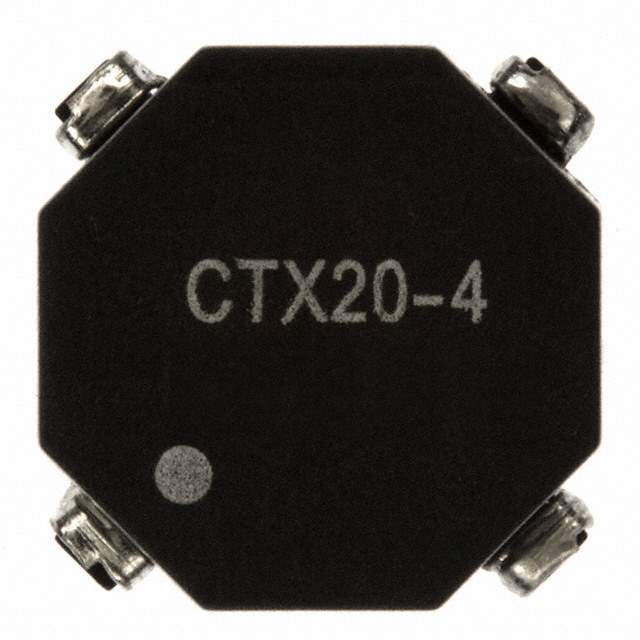

CTX20-4-R Real Image
Same model may have multiple batches, images only for reference.

CTX20-4-R

Part No CTX20-4-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 19.6UH SMD
Datasheet
CTX20-4-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 78.4μH
Inductance - Connected In Parallel 19.6μH
Tolerance ±20%
Current Rating - Parallel 2.1A
Current Rating - Series 1.05A
DC Resistance (DCR) - Parallel 55 mOhm Max
DC Resistance (DCR) - Series 220 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 050530-CTX20-4-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CTX20-4-R CAD Model

Description

Product Overview

The CTX20-4-R stands out as a high-performance component designed to meet the demands of modern electronics. Its robust design guarantees resilience in various environments.

Features and Benefits

  • Enhanced stability and low noise operation
  • Energy-efficient performance
  • Rugged construction for extended service life

Applications

  • Aerospace technology
  • Renewable energy systems
  • Telecommunications equipment
  • Medical devices

Additional Details

The CTX20-4-R is engineered to minimize power loss, ensuring optimal performance in all applications.
