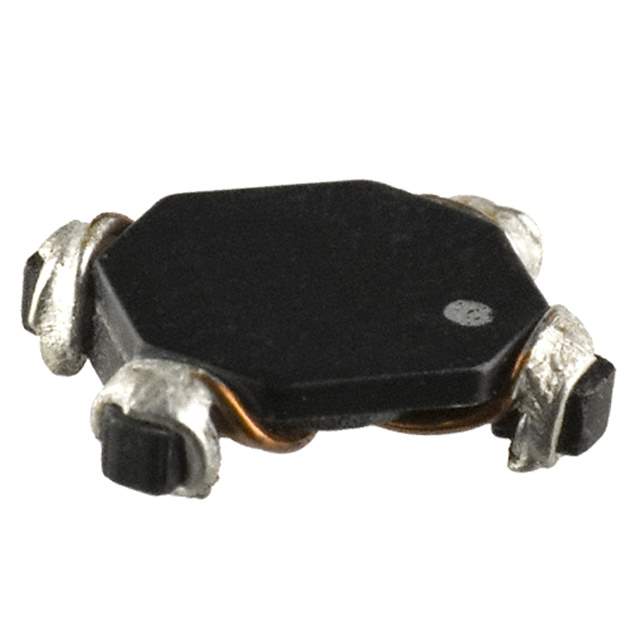

CMS1-3-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-3-R

Part No CMS1-3-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 12.6UH 4.1A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 18 Weeks
Features 2 Line Common Mode Choke Surface Mount 4.1A DCR 77mOhm
Manufacturer Eaton Bussmann
Series CMS
Package Reel - TR
Operating Temperature Range -40°C ~ 160°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number Q7485121C, 513-1749-6, CMS1-3, 513-1749-2, 513-1749-1, CMS1-3-R-ND, CMS1-3-ND, CMS13R
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915631-CMS1-3-R
Ultra Librarian 3D Model Ultra Librarian CMS1-3-R CAD Model

Description

The Eaton CMS1-3-R is a 2 line common mode choke surface mount filter that belongs to the CMS series.

  • Lines: 2
  • Type: Common Mode Choke, Surface Mount Filter
  • Series: CMS
  • Package: Horizontal, 4 PC pad
  • Package Format: Reel
  • Operating Temperature Range: -40°C to 160°C
  • Current Rating: 4.1A
  • DCR: 77mOhm
  • Supply and Demand Status: Balance
