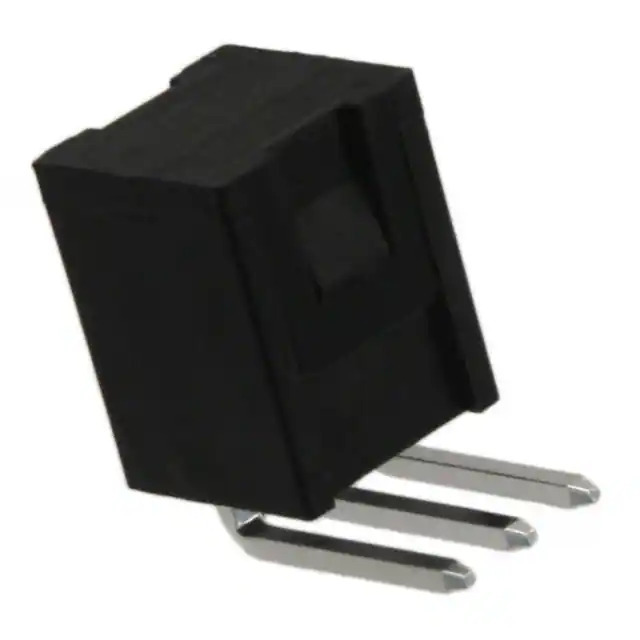

TM1000Q E-Switch
Same model may have multiple batches, images only for reference.

TM1000Q

Part No TM1000Q
Manufacturer E-Switch
Catalog Motion Sensors - Tilt Switches
Description SWITCH TILT SPST
Datasheet
TM1000Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Tilt Switches
Mfr E-Switch
Series -
Package Tape & Reel (TR)
Product Status Active
Operating Angle ±45°
Output Type SPST
Mounting Type Through Hole, Right Angle
Temperature Range - Operating -25°C ~ 70°C
Voltage - Supply -
Current - Output 20mA
Package / Case 3-SIP Module
Base Product Number TM1000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375660-TM1000Q
Ultra Librarian 3D Model Ultra Librarian TM1000Q CAD Model

Description

The TM1000Q is a tilt switch sensor manufactured by E-Switch.

  • Operating Temperature: -25°C ~ 70°C
  • Package / Case: 3-SIP
  • Mounting Type: Through Hole, Right Angle
  • Voltage - Supply: -
  • Output Type: SPST
  • Current - Output: 20mA
  • Operating Angle: ±45°
  • HTSUS: 8536.50.9065
  • REACH Status: Unaffected
