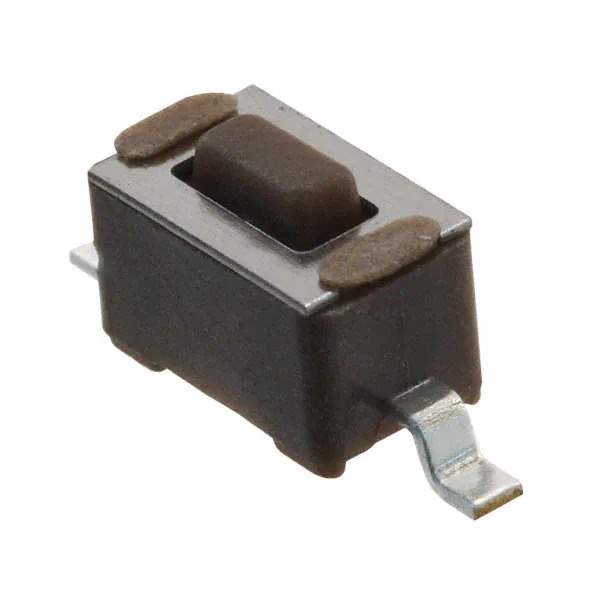

TL3302AF130QG

Name: TL3302AF130QG
Brand: E-Switch
SKU: 1376520
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3302AF130QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	TL3302AF130QG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL3302
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	4.30mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 3.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	130gf
Ingress Protection	-
Features	Tactile Feedback
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyphenylene Sulfide (PPS)
Switch Travel	0.25mm
Mechanical Life	40,000 Cycles
Base Product Number	TL3302
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376520-TL3302AF130QG
Ultra Librarian 3D Model	Ultra Librarian TL3302AF130QG CAD Model

Description

The 1376520-TL3302AF130QG is a surface mount tactile switch from the TL3302 series by E-Switch.

Mounting Type: Surface Mount
Actuator Type: Rectangular Button
Tactile Feedback: Yes
Operating Force: 130gf
Mechanical Life: 40,000 Cycles
Contact Rating: 0.05A @ 12VDC
Operating Temperature: -20°C to 70°C
Size: 6.00mm x 3.50mm
