Same model may have multiple batches, images only for reference.

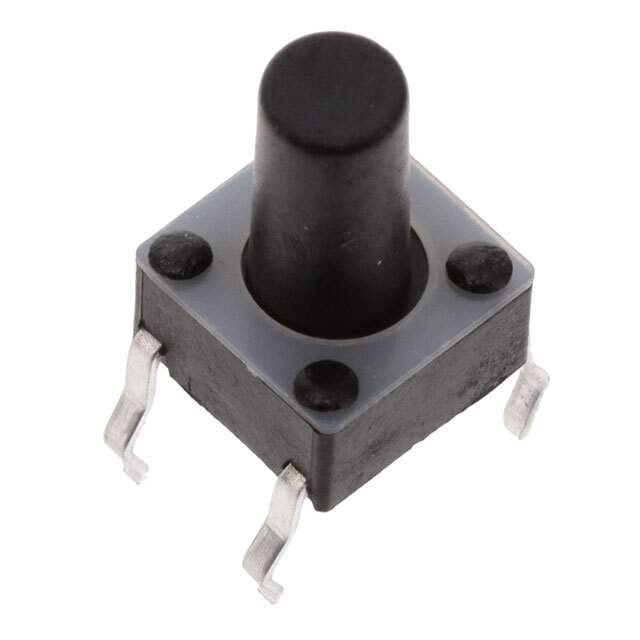

TL1105GF160Q Real Image
Same model may have multiple batches, images only for reference.

TL1105GF160Q

Part No TL1105GF160Q
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
TL1105GF160Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL1105
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 9.70mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL1105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names -TL1105GF160Q,EG5997,TL1105GF160Q-ND
Standard Package 1,000
Win Source Part Number 1009237-TL1105GF160Q
Ultra Librarian 3D Model Ultra Librarian TL1105GF160Q CAD Model

Description

The E-Switch TL1105GF160Q is a tactile switch that is SPST-NO and has a standard actuator type.

  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Operating Temperature: -20°C to 70°C
  • Termination: Through-Hole
  • Illumination: Non-Illuminated
  • Illumination Voltage: None
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
