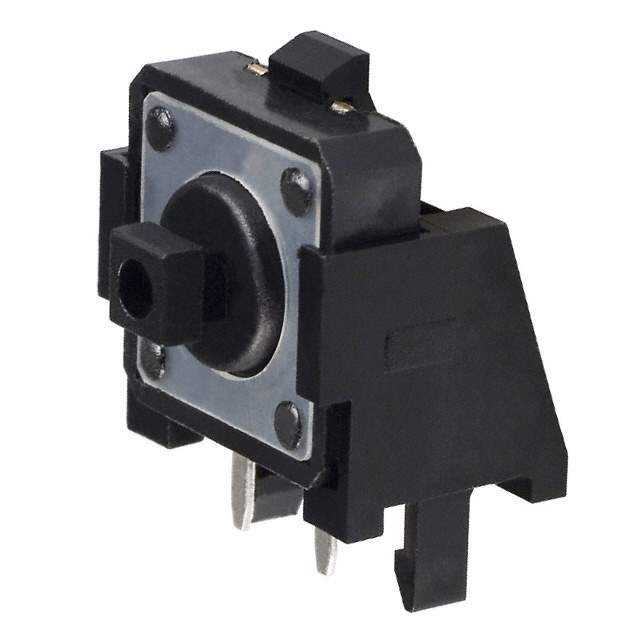

Same model may have multiple batches, images only for reference.

TL1100CF160Q

Name: TL1100CF160Q
Brand: E-Switch
SKU: 1129794
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL1100CF160Q
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	TL1100CF160Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	E-Switch
Series	TL1100
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole, Right Angle
Actuator Length, Right Angle	6.45mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	12.00mm x 9.90mm
Illumination	Non-Illuminated
Operating Force	160gf
Features	Tactile Feedback
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyester
Switch Travel	0.30mm
Mechanical Life	100,000 Cycles
Base Product Number	TL1100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	EG1822,P001110,D301110,TL1100C
Standard Package	400
Win Source Part Number	1129794-TL1100CF160Q
Ultra Librarian 3D Model	Ultra Librarian TL1100CF160Q CAD Model

Description

The E-Switch TL1100CF160Q is a tactile switch manufactured by E-Switch.

Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Plunger for Cap
Actuator Orientation: Side Actuated
Switch Travel: 0.30mm
Operating Force: 160gf
Mechanical Life: 100,000 Cycles
Mounting Type: Through-Hole, Right-Angle
Termination Style: PC Pin
Illumination: Non-Illuminated
Actuator Material: Polyester
Package: Bulk
Outline: 12.00mm x 9.90mm
Contact Rating @ Voltage: 0.05A @ 12VDC
Temperature Range: -20°C ~ 70°C
