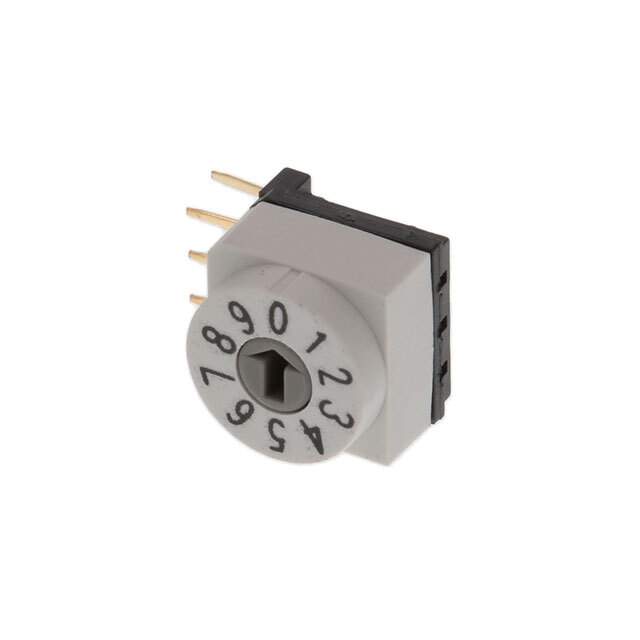

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 8 Weeks
Features Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 150mA 42VDC
Manufacturer E-Switch
Series RDT
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name RDTAR10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Part Number RDTAR10R2T-ND, EG5973
Quantity per package 50
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891551-RDTAR10R2T
Ultra Librarian 3D Model Ultra Librarian RDTAR10R2T CAD Model

Description

The RDT dip switch from E-Switch is a BCD 10 position switch with a through hole, right angle mounting style.

  • Actuator: Rotary for tool
  • Contact Rating: 150mA 42VDC
  • Operating Temperature: -40°C ~ 85°C
  • Mechanical Life: 1,000,000 cycles
  • Mounting: Tube
  • Quantity per Package: 50
  • ECCN: EAR99
